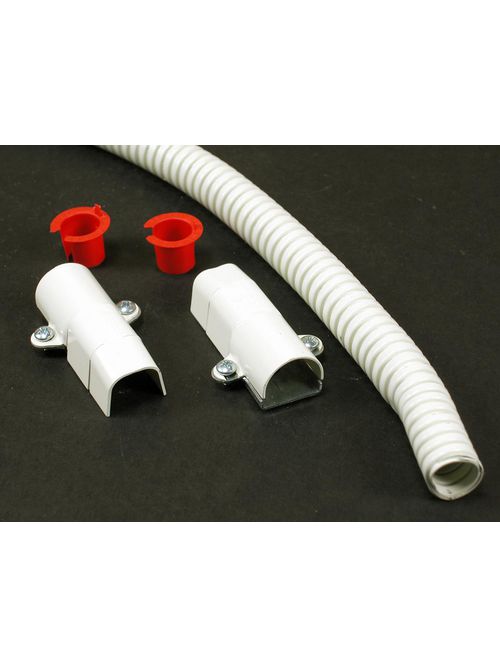

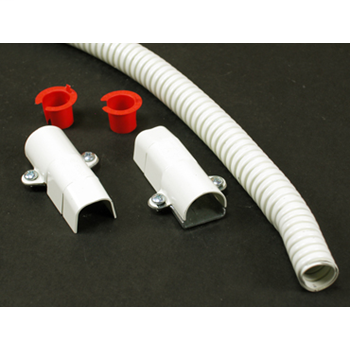

Wiremold V5700F 18" Ivory Steel 1-Channel Raceway Flexible Section
Product image thumbnail 0
Product image thumbnail 1
$29.89/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # V5700F
QED Part # 136106
Fittings & Accessories

Features

  • This product meets the material restrictions of RoHS

Specifications

  • Product Depth: 0.75 in
  • Special Features: Low-profile, unobtrusive appearance., Surface mounting, UL5 and ADA compliant, UL and cUL Listed component raceways
  • Product Height: 1.63 in
  • Type: Raceway
  • Product Width: 18.0 in
  • Voltage: 300.0 V
  • Application Sector: Commercial
  • Product Volume: 22.01 cu in
  • Product Weight: 0.42 lb
  • Standard: cULus Listed Surface Metal Raceway: File E41751: Guide RJPR/RJPR7
  • Country Of Origin: US
  • Certifications: ROHS,NAFTA,CULUS
  • Color: Ivory
  • Product Line: Wiremold

Certifications

  • NAFTA Compliant
  • cULus Listed: E41751
  • RoHS Compliant

Overview

Long Description Wiremold 500 Series and 700 Series raceways are ideal for surface mounting small amounts of electrical wiring or communication cables. These rugged raceways offer a low profile appearance which blend with any decor. Available in our exclusive ScuffCoat finish.
GTiN 00786776070262
Length 18 in
Color Ivory
Type Raceway
Material Steel
Product Series 500,700
Applications Commercial, Office, Residential
Country of Origin USA
Capacity Single-Channel
Family Brand Name Wiremold
Certifications CULUS,NAFTA,ROHS
Blade Dimensions 18 in L
Jacket Color Ivory, White
Sub Brand Wiremold
Voltage 300 Volt
Width 18.0 in
Depth 0.75 in
Height 1.63 in
Weight 0.42 lb
UPC 78677607026
