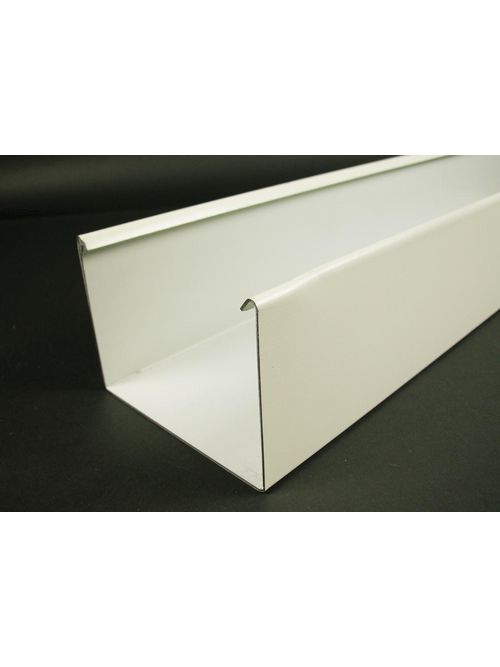

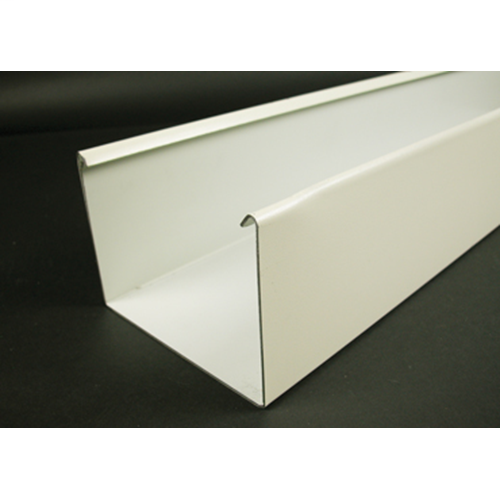

Wiremold G6000B-10 4-3/4 x 3-9/16" Gray Steel Multiple Channel Raceway Base
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$10.87/ft (1 ft)
In Stock | 60 available at 1 location
ft
Adding...
Order in multiples of 10 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # G6000B-10
QED Part # 136151
Fittings & Accessories

Specifications

  • Special Features: Extra Large Capacity, Complete line of fittings, Wide range of Datacom connectivity options, UL5 and ADA compliant, UL and cUL Listed
  • Product Depth: 3.5 in
  • Type: Raceway
  • Product Height: 4.75 in
  • Product Width: 120.0 in
  • Voltage: 600.0 V
  • Application Sector: Commercial
  • Product Volume: 1995.0 cu in
  • Standard: cULus Listed Surface Metal Raceway: File E4376: Guide RJBT/RJBT7
  • Product Weight: 44.67 lb
  • Country Of Origin: US
  • Certifications: CULUS,ROHS,NAFTA
  • Color: Gray
  • Product Line: Wiremold

Certifications

  • NAFTA Compliant
  • cULus Listed: E4376
  • RoHS Compliant

Overview

Long Description The Wiremold 6000 Series Raceway can be used divided for separate wiring circuits or multi-service applications. For large cabling installations, 6000 can be used undivided as headers and feeders or to bring wiring to a specified location. 6000 Series Raceway is ideal for all applications requiring a high cable capacity, dual service steel raceway. Commercial, institutional, and industrial applications all benefit from the 6000 Series rigid steel construction and durable Ivory ScuffCoat finish. 6000 Series Raceway is also ideal for municipalities that require either all steel construction or prohibit nonmetallic cable management systems.
GTiN 00786776080384
Length 10 ft
Finish Baked Enamel
Color Gray
Type Raceway
Material Steel
Product Series 6000
Applications Commercial, Office
Component Type Raceway Base & Cover
Country of Origin USA
Family Brand Name Wiremold
Number of Channels 1
Certifications CULUS,NAFTA,ROHS
Outside Diameter 3 9/16"x4 3/4"
Blade Dimensions 10 ft L x 3-9/16 in W x 4-3/4 in H
Jacket Color Ivory, Gray
Sub Brand Wiremold
Voltage 600 Volt
Width 120.0 in
Depth 3.5 in
Height 4.75 in
Weight 44.67 lb
