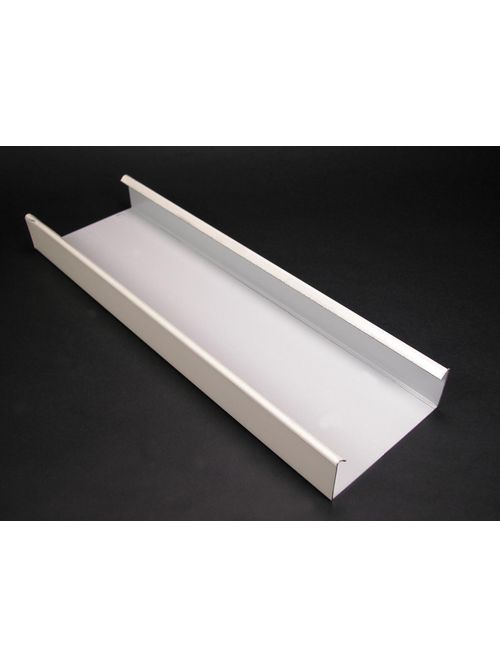

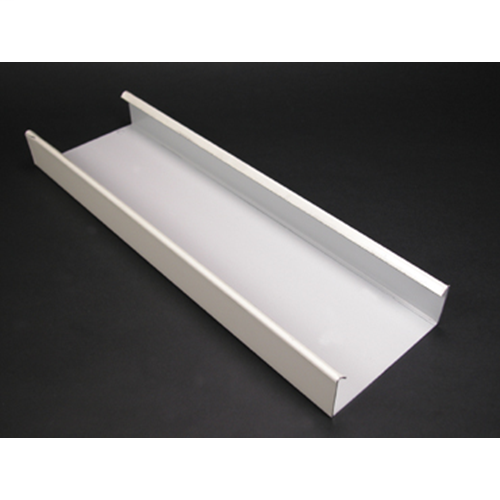

Wiremold G4000B-10 4-3/4 x 1-3/4" Gray Steel Multiple Channel Raceway Base
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5.89/ft (1 ft)
ft
Adding...
Order in multiples of 10 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # G4000B-10
QED Part # 136148
Fittings & Accessories

Specifications

  • Product Depth: 1.63 in
  • Special Features: Large Capacity, Complete line of fittings, Wide range of Datacom connectivity options, UL5 and ADA compliant, UL and cUL Listed
  • Type: Raceway
  • Product Height: 4.75 in
  • Product Width: 120.0 in
  • Voltage: 600.0 V
  • Application Sector: Commercial
  • Product Volume: 929.1 cu in
  • Product Weight: 76.4 lb
  • Standard: cULus Listed Surface Metal Raceway: File E4376: Guide RJBT/RJBT7
  • Country Of Origin: US
  • Certifications: NAFTA,ROHS,CULUS
  • Color: Gray
  • Product Line: Wiremold

Certifications

  • cULus Listed: E4376
  • NAFTA Compliant
  • RoHS Compliant

Overview

Long Description The Wiremold 4000 Series Raceway is the workhorse of surface cable raceway systems. The multiple channel cable raceway can be divided for multi-service applications and is ideal for all applications requiring a large cable capacity dual service steel raceway. Commercial, institutional and industrial applications all benefit from the Wiremold 4000 Series rigid steel construction and durable Ivory ScuffCoat finish. The Wiremold 4000 Series Raceway is also ideal for municipalities that require either all steel construction or prohibit nonmetallic cable management systems.
GTiN 00786776080315
Length 10 ft
Color Gray
Type Raceway
Material Steel
Product Series 4000
Applications Commercial, Office, Residential
Component Type Raceway Base & Cover
Country of Origin USA
Family Brand Name Wiremold
Number of Channels 1
Certifications CULUS,NAFTA,ROHS
Outside Diameter 1 3/4" x 4 3/4"
Blade Dimensions 10 ft L x 4-3/4 in W x 1-3/4 in H
Jacket Color Ivory, Gray
Sub Brand Wiremold
Voltage 600 Volt
Width 120.0 in
Depth 1.63 in
Height 4.75 in
Weight 76.4 lb
UPC 78677608031
