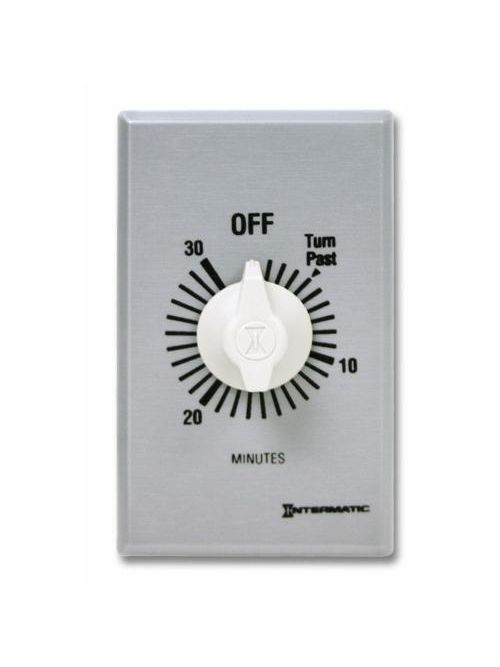

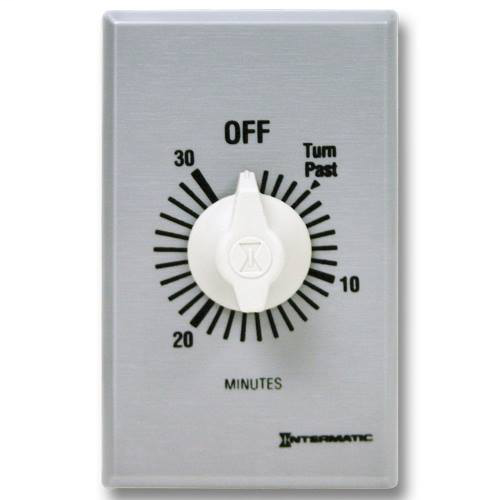

Intermatic FF30MC 30 Minute 125 to 277 VAC 60 Hz SPST Countdown Timer
Product image thumbnail 0
Product image thumbnail 1
$35.49/ea
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # FF30MC
QED Part # 138105
Analog Timers

Features & Applications

Features

  • No electricity required to operate
  • Replaces any standard or decorator single or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Brushed metal look switch plate meets NEC requirements (plate is included)
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required

Applications

  • Bathroom Fans
  • Spas
  • Hot Tubs
  • Storage Closets
  • Garage Lights

Specifications

  • Color: Brushed Metal
  • Switch Type: SPST
  • Countdown Time: 30 min
  • Hold Mode Included: No
  • Input Voltages Display: 125-277 VAC, 50/60 Hz
  • Resistive: 10 A, 250/277 VAC, 50/60 Hz 20 A, 125 VAC, 50/60 Hz
  • Incandescent Load Ratings (Multi-Gang): 7 A, 125 VAC, 50/60 Hz
  • Incandescent Load Ratings (Single-Gang): 7 A, 125 VAC, 50/60 Hz
  • Motor: 1 HP, 125 VAC, 50/60 Hz 2 HP, 250 VAC, 50/60 Hz
  • Operating Temperature Max (°C): 40
  • Operating Temperature Max (F): 104
  • Operating Temperature Min (°C): 0
  • Operating Temperature Min (F): 32
  • Product Weight (kg): 0.137
  • Product Weight (lbs): 0.301
  • Product Height (in): 4.125
  • Product Height (mm): 104.8
  • Product Width (in): 1.75
  • Product Width (mm): 44.5
  • Product Depth (in): 1.25
  • Product Depth (mm): 31.8
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Related Accessories and Parts

  • 146MT577: Knob-Wall Switch FF Series - White
  • 146MT579: Knob-Wall Switch FF Series - Black
  • FF30MP: Plate for 30-Min without HOLD, Gray (FF30MC, FF330M, FF430M)

Categories

Overview

Long Description The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements.
GTiN 00078275005303
Warranty Length 1 yr
Width 1.75 in
Size 2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Color Brushed Metal
Type Commercial, Spring Wound, Auto-Off, Mechanical
Material Plastic
Applications Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Mounting Type Wall Mount
Depth 1.25 in
Height 4.125 in
Weight 0.301 lb
Standard CCSAus Certified,HVACR,NEC,UL Listed,UL Recognized
Frequency 50/60 Hz
Connection Type Teeter Type
Switch Type SPST
Input Voltage 125-277 V
Family Brand Name Intermatic
Power Source 1 hp at 120 VAC, 2 hp at 240 VAC
TC Connection Teeter Type
Contact Configuration SPST - 1 NO
Amperage 15 Amp
Max Operating Temperature 104 degrees F
Blade Dimensions 1.6 in W x 1.19 in D x 2.79 in H
Min Operating Temperature 32 degrees F
Contact Rating 7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive)
Number of Poles 1 Pole
Action SPST
Voltage 125-277 VAC
