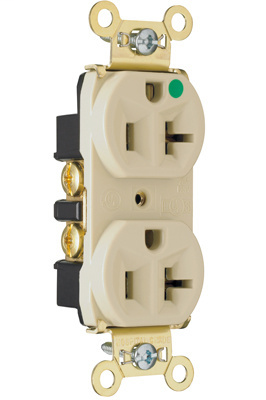

Pass & Seymour 8300-HI 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Ivory Nylon Face PVC Back Body Compact Duplex Receptacle
$8.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 8300-HI
QED Part # 120269
Duplex

Features

  • Impact-resistant nylon face.
  • One-piece heat-treated triple-wipe brass power contacts.
  • Easily accessible break-off line contact connecting tab for split circuit wiring.
  • Corrosion-resistant, zinc-plated steel strap is locked in.
  • Internal screw-pressure-plate back wire and side wire line terminals accept #14 – #10 AWG copper or copper-clad conductors.
  • High strength thermoplastic back body.
  • Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment.
  • Auto-ground clip assures positive ground.
  • Compact design for easy installation.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Ivory
  • Type: Compact Design,Receptacles
  • Duty: Heavy Duty
  • Special Features: Back,Side Wire

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 42
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406
  • UR: No

Dimensions

  • Depth (US): .780"
  • Height (US): 3.281"
  • Width (US): 1.322"

Technical Information

  • Amps: 20A
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Hospital

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500783003
Long Description Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back & Side Wire 20amp 125volt Ivory
GTiN 00785007830033
Finish Untreated
Width 1.322 in
Size 3.3 in
Color Ivory
Voltage 125 Volt
Type Compact Design,Receptacles
Material Thermoplastic
Conductor Size 4 AWG
Applications Industrial Spec Grade
Mounting Type Wall, Flush
Depth .780 in
Height 3.281 in
Grade Hospital
Country of Origin Mexico
Wire Size 4 AWG
Capacity Duplex
Connection Type Wire Ground
Family Brand Name Pass & Seymour
Certifications FEDSPEC,CULUS
TC Connection Wire Ground
Duty Rating Heavy Duty
Amperage 20 Amp
Blade Dimensions 3.3 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
