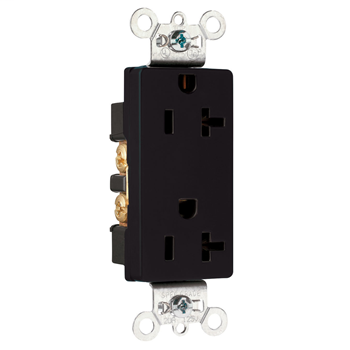

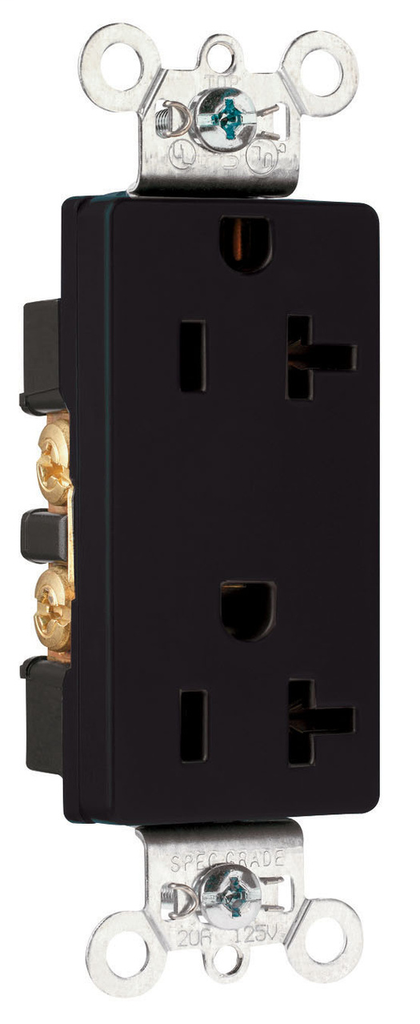

Pass & Seymour 26352-BK 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Black Nylon Face Heavy Duty Duplex Decorator Receptacle
$6.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 26352BK
QED Part # 119801
STRAIGHT BLADE RECEPTACLE
26352-BK

Overview

UPC 78500778536
Long Description Heavy-Duty Decorator
Pipe Size Decorator
Pressure Rating Duplex
GTiN 00785007785364
Finish Decor, Gloss
Width 1.322 in
Size 1.322 L x .833 W x 3.813 H In
Color Black
Voltage 125 Volt
Type Decorator, Heavy Duty
Material Nylon
Conductor Size 14-10 AWG
Applications Commercial Grade
Mounting Type Wall, Flush
Depth 0.833 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Style Decorator
Wire Size #14 - #10 Awg
Capacity Duplex
Connection Type Back and Side Wire
Temperature Rating -40 to 60 C
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
TC Connection Back and side wire
Duty Rating Heavy Duty
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 33.58 mm W x 21.16 m
Environmental Conditions UL 94 Requirements,
Number of Poles 2
Number of Wires 3
Sub Brand Pass & Seymour
