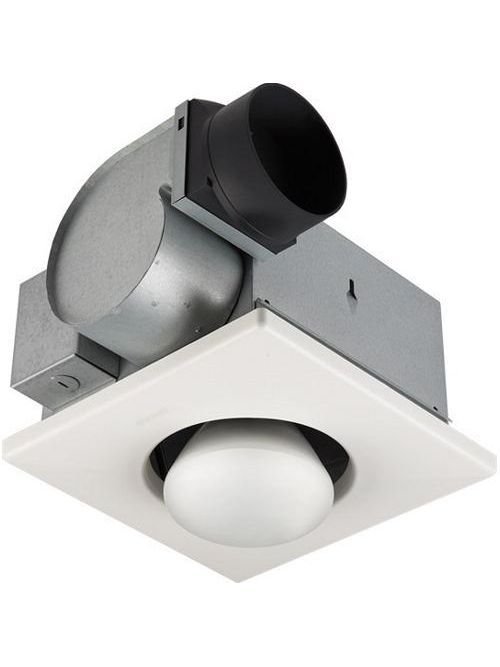

Broan 162 2.5 Amp 120 Volt 70 CFM 3.5 Sones 300 W 10-1/4 x 10-1/4" White Polymeric Grille 1-Bulb Heater
Product image thumbnail 0
Product image thumbnail 1
$81.99/ea
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Broan-Nutone
Mfg Catalog # 162
QED Part # 132387
Infrared Heaters

Features

  • Quiet, highly efficient polymeric blower wheels
  • Polymeric dampers prevent backdrafts and eliminate mechanical noise
  • Polymeric 4" round duct connectors with tapered sleeves simplify ducting
  • Operate fan and heater independently or together
  • Attractive white polymeric grilles
  • Compact steel housings with adjustable mounting brackets with keyhole slots that span up to 24"
  • 250 watt R40 or BR40 size infrared bulbs (not included)
  • Type IC, UL Listed for 60°C wiring (retrofits)
  • 162: One-Bulb Heater/Fan
  • 164: Two-Bulb Heater/ Fan, Two-function control (available separately)
  • Infrared bulbs deliver energy-saving warmth
  • Get instant comfort in the bathroom without turning up the central thermostat
  • 250 watt R40/BR40 size infrared bulbs (not included)
  • Attractive, white polymeric grilles
  • Compact steel housings
  • Adjustable mounting brackets with keyhole slots span up to 24"
  • 161: One-Bulb Heater, UL Listed for 75°C wiring
  • 163: Two-Bulb Heater, Type IC

Specifications

  • CFM: 70
  • Recommended Room Size (Sq. Ft.): 65
  • Sones: 4.0
  • Light Bulb Wattage: 250
  • Recommended Light Bulb Type: BR40
  • Light Bulb Quantity: 1
  • Room Side Installation: No
  • Duct Diameter: 4"
  • Housing Height: 6-3/8"
  • Housing Length: 8-3/8"
  • Housing Width: 8-1/8"
  • Grille Length: 10-1/4"
  • Rated Amps: 2.5
  • Watts: 9
  • Warranty: 1 year limited
  • Lighting Type: Infrared
  • Light Bulbs Included: No
  • Nightlight: No
  • Grille Width: 10-1/4"
  • Minimum Construction Space Required: 2" x 8"
  • Motor Engineered for Continuous Operation: No
  • Radiation Damper Available: No
  • Voltage: 120

Overview

Long Description Trust Broan Bulb Heater/Fans and Bulb Heaters for energy-saving warmth and instant comfort without ever having to touch your central thermostat. These units deliver superior performance and excellent ventilation in a compact package.
GTiN 00026715002627
Applications For Energy-Saving Warmth And Instant Comfort In The Bathroom
Wattage 9 Watt
Family Brand Name Broan-Nutone
Housing Material Steel
Warranty Length 1 yr
Voltage 120 Volt
Mounting Type Ceiling
Standard UL
Light Type Infrared
Bulb Included No
Amperage 2.5 Amp
Grille Width 10-1/4 in
Duct Size 4 in
Grille Length 10-1/4 in
Airflow Rate 70 CFM
Housing Height 6-3/8 in
Housing Width 8-1/8 in
