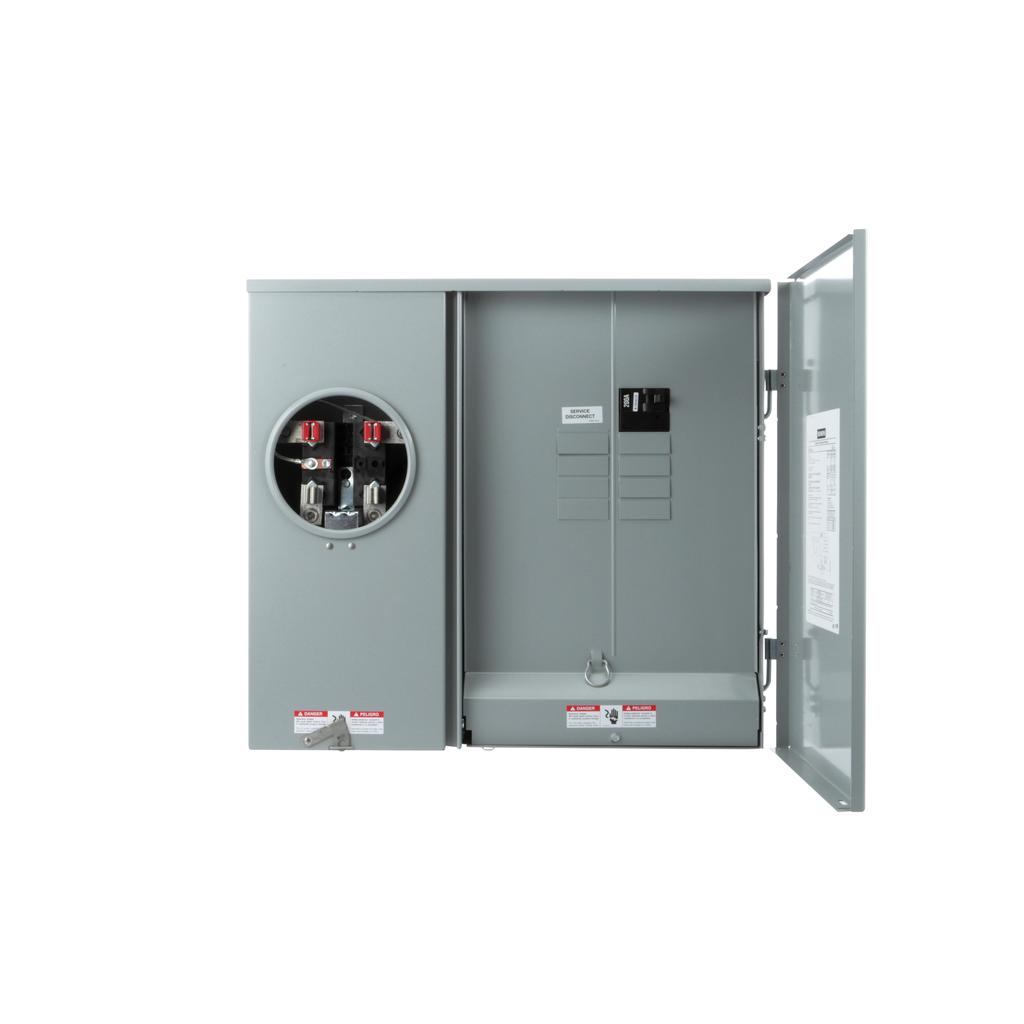

Siemens MC0816B1200TH 120/240 VAC 200 Amp 1-Phase 3-Wire Ring Type Combination Meter Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$293.99/ea
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MC0816B1200TH
QED Part # 1610266
Meter Breaker Combination Sockets

Features

  • Suitable for use as service equipment only
  • Copper buss bar for excellent conductivity
  • Rainproof enclosure
  • Single-phase, 3-wire, 200 Amp continuous, 120/240 VAC
  • Meets UL and ANSI safety requirements
  • Includes 2 hubs

Specifications

  • Certificate of suitability: UL
  • Ampacity: 200 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Cable entry type: TOP / BOTTOM
  • Mounting type: SURFACE
  • Suitability for operation: SERVICE ENTRANCE EQUIPMENT
  • Phase number: 1
  • Design of the terminal strip: 4-JAW
  • Number of sockets switchable: 1
  • Number of terminals: 3
  • Product brand name: SIEMENS
  • Product type designation: METER LOAD CENTER - MAIN DISCONNECT COMBINATION
  • Special product feature: FEED THRU LUGS DOUBLE HUB PROVISION

Overview

Family Brand Name Siemens
Long Description The Siemens 200 Amp 8-Space 16-Circuit 4J Overhead or Underground Combination Main Breaker/Meter Socket Load Center is suitable for use as service equipment only. This combination load center features a highly conductive copper buss bar and a rainproof enclosure. Provide a single-phase, 3-wire, 200 Amps continuous, 120/240 VAC rated device with this load center.
GTiN 00783643404922
Size 1
Operating Temperature N/A
Voltage 120/240 Volt
Type METERLOADCENTER-MAINDISCONNECTCOMBINATION
Applications SERVICEENTRANCEEQUIPMENT
Mounting Type SURFACE
Number of Phases 1 Phase
Amperage 200 Amp
Cable Entry TOP/BOTTOM
Enclosure Ring
Sub Brand Meter Combos
