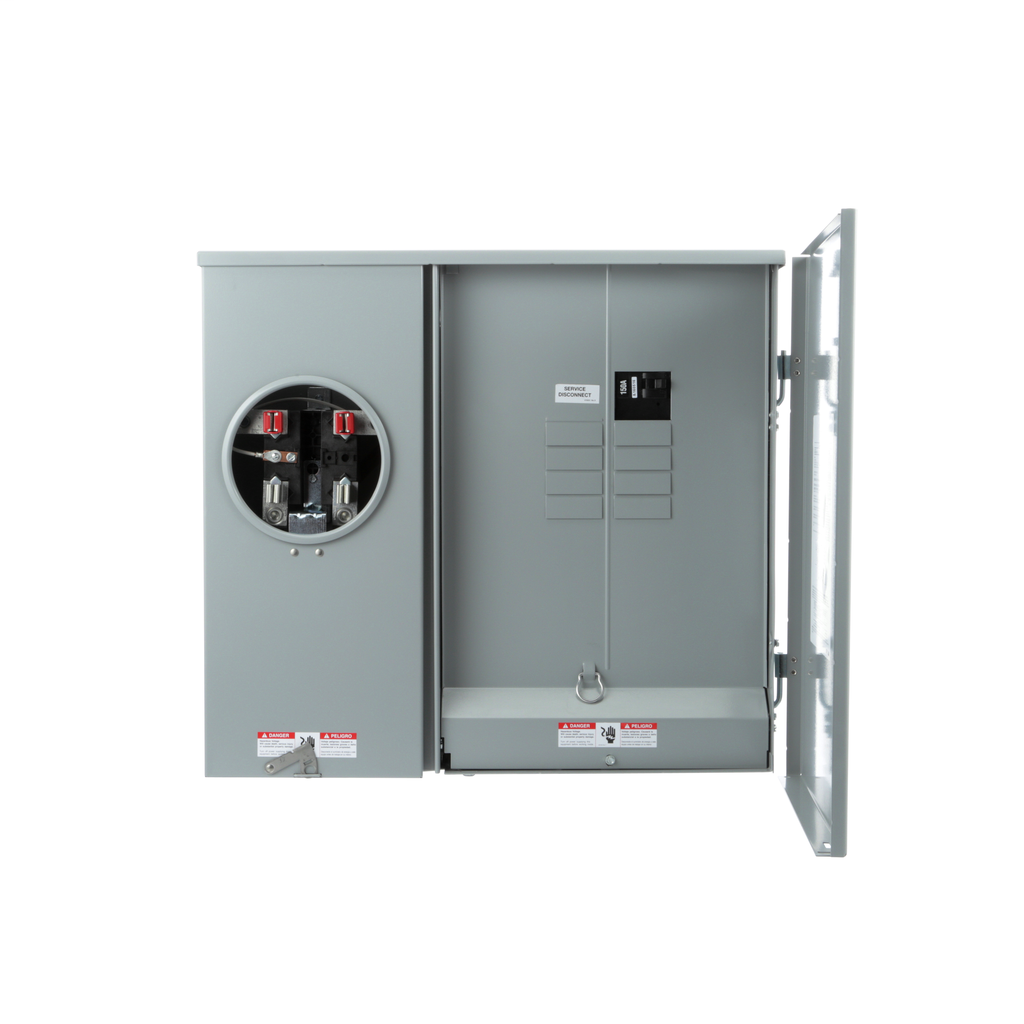

Siemens MC0816B1150TH 120/240 VAC 150 Amp 1-Phase 3-Wire Ring Type Combination Meter Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # MC0816B1150TH
QED Part # 1610268
Meter Breaker Combination Sockets

Features

  • 22kAIC rated
  • Pad locking provisions on all devices
  • Contact local utility to confirm meter socket approval
  • UL Listed

Specifications

  • Certificate of suitability: UL
  • Ampacity: 150 A
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Cable entry type: TOP / BOTTOM
  • Mounting type: SURFACE
  • Suitability for operation: SERVICE ENTRANCE EQUIPMENT
  • Phase number: 1
  • Design of the terminal strip: 4-JAW
  • Number of sockets switchable: 1
  • Number of terminals: 3
  • Product brand name: SIEMENS
  • Product type designation: METER LOAD CENTER - MAIN DISCONNECT COMBINATION
  • Special product feature: FEED THRU LUGS DOUBLE HUB PROVISION

Overview

UPC 78364340494
Family Brand Name Siemens
Long Description Siemens Meter Main and Meter Load Center Combinations provide a full range of Metering Products that are built for safety ease of installation and long term quality. A Meter Main is a device that provides a meter socket and a main breaker, a meter combination load center provides a socket, main breaker and load center interior. Siemens has also introduced a line of Solar Ready Meter Combination Load Centers. These combos feature a cost effective construction that is preferable in non-EUSERC areas.
GTiN 00783643404946
Size 1
Operating Temperature N/A
Voltage 120/240 Volt
Type METERLOADCENTER-MAINDISCONNECTCOMBINATION
Applications SERVICEENTRANCEEQUIPMENT
Mounting Type SURFACE
Number of Phases 1 Phase
Amperage 150 Amp
Cable Entry TOP/BOTTOM
Enclosure Ring
Sub Brand Modular Metering
