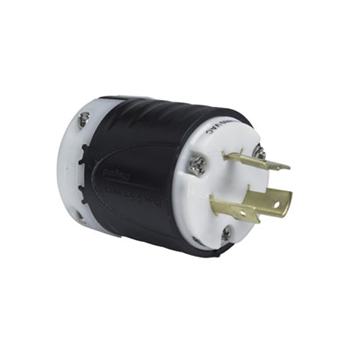

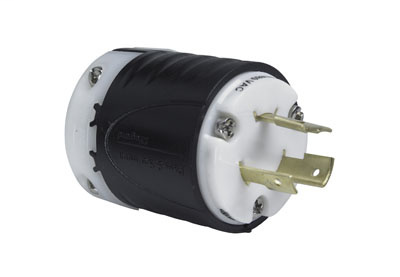

Pass & Seymour L820-P 20 Amp 480 VAC 2-Pole 3-Wire NEMA L8-20P Black and White Nylon Straight Locking Plug

Features

• Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
• Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
• Raised ribs provide non-slip gripping profile for turning to lock and unlock.
• Double dovetail design provides superior protection against cord pull-out forces.
• Impact- and corrosion-resistant durable nylon 6 shell material.
• Rounded back contour reduces snags and hang-ups on the job site.
• Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
• Visible stamped NEMA configuration and device rating.
• New-design external cord grips provide visible assurance of safe and proper cord retention.
• Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.

Specifications

General Info

• Color: Black, White
• Type: Plug
• Number Of Wires: 3

Listing Agencies/Third Party Certifications

• RoHS: Yes
• CSA Standard: Yes
• CUL Listing No: No
• cURus: No
• Federal Spec: No
• UL Listing No: 498
• UL Standard: Yes
• UN SPSC: 39121403
• UR: No

Dimensions

• Diameter (US): 2.20"
• Length (US): 3.75"

Technical Information

• Amps: 20A
• NEMA Configuration Number: L820
• Volts: 480V
• Volts (AC): 480

Buy American Act Compliance

• Country Of Origin: MEXICO
• Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

• RoHS Compliant
