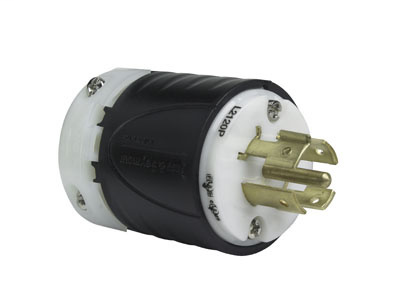

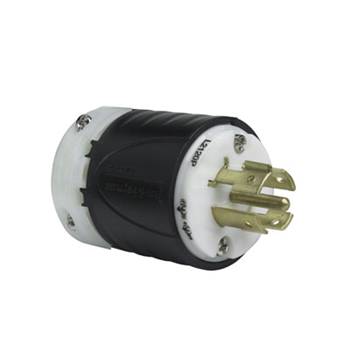

Pass & Seymour L2120-P 20 Amp 120/208 VAC Star 3-Phase 4-Pole 5-Wire NEMA L21-20P Black and White Nylon Straight Locking Plug
$29.19/ea
In Stock | 3 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L2120-P
QED Part # 119262
Plugs

Features

  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock.
  • Double dovetail design provides superior protection against cord pull-out forces.
  • Impact- and corrosion-resistant durable nylon 6 shell material.
  • Rounded back contour reduces snags and hang-ups on the job site.
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
  • Visible stamped NEMA configuration and device rating.
  • New-design external cord grips provide visible assurance of safe and proper cord retention.
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.

Specifications

General Info

  • Color: Black, White
  • Type: Plug
  • Number Of Wires: 5

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403

Dimensions

  • Diameter (US): 2.20"
  • Length (US): 3.75"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: L2120
  • Volts: 120/208V
  • Volts (AC): 120/208

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Turnlok Plug 5wire 20amp 3phase 120/208v WARNING: This product can expose you to chemicals including DEHP and lead, which are known to the State of California to cause cancer, and DEHP and lead, which are known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
GTiN 00785007212044
Length 3.75 in
Size 3.8"
Color Black,White
Voltage 120 Volt
Type Straight Angled
Diameter 2.20 in
Material Thermoplastic
Conductor Size 0-18 AWG
Applications Industrial
Country of Origin Mexico
Wire Size 18-0 AWG
Family Brand Name Pass & Seymour
NEMA L2120
Certifications FEDSPEC,CULUS
Amperage 20 Amp
Blade Dimensions 3.8 in
Number of Poles 4 Pole
Number of Wires 5
UNSPSC 39121403
Sub Brand Pass & Seymour
