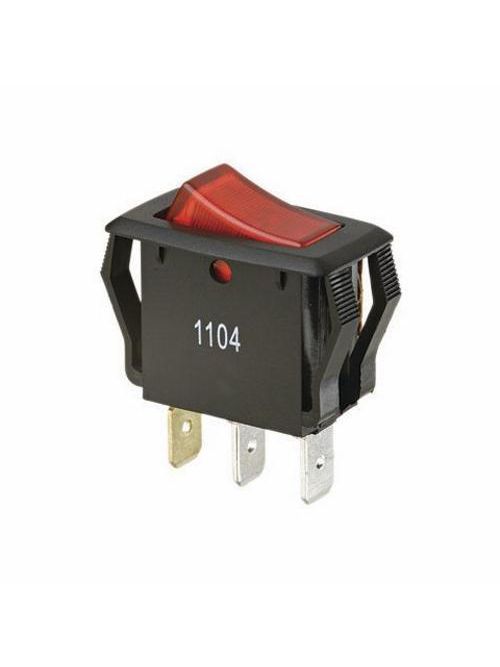

Ideal 774039 1/3 or 1/2 Hp 10/16 Amp 125/250 VAC SPST On-Off Spade Terminal Red Rocker Switch
Product image thumbnail 0
Product image thumbnail 1
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 774039
QED Part # 1084445
1-Pole

Features

  • Great for home appliances, computer equipment, automotive and industrial controls
  • Appliance Rockers fit standard .55 in. × 1.12 in. panel cut outs
  • Plain and lighted versions available

Specifications

  • Operating temperature: 32°F to 185°F (0°C to 85°C)

Overview

UPC 78178974039
Family Brand Name Ideal
Long Description IDEAL, Rocker Switch, Appliance, On-Off, Voltage Rating: 125, 250 VAC, Amperage Rating: 16, 10 AMP, Action: SPST, Number Of Poles: 1, Connection: Spade, 3 Terminals, Size: 1.240 IN Length X 0.680 IN Width X 0.770 IN Height, Operating Temperature: 32 To 185 DEG F, Hp Rating: 1/3 HP At 125 VAC, 1/2 HP At 250 VAC, Panel Cut Outs: 0.550 X 1.120 IN
GTiN 00781789740393
Size 1.240 IN Length X 0.680 IN Width X 0.770 IN Height
Color Red
Operating Temperature 0 To 85 C
Voltage 125/250 VAC
Type Illuminated
Terminal Type Screw
Applications For Home Appliances, Computer Equipment, Automotive And Industrial Controls
TC Connection Spade, 3 Terminals
Actuator Rocker/Button
Number of Poles 1 Pole
Action SPST
Standard CSA,RU Listed,RoHS
Connection Type 3 Terminals,Spade
