Pass & Seymour 1200 120/250 VAC 15 Amp Bronze Coat Steel Plate Light On Door Open Pressure Sensitive Door and Canopy Switch
Product image thumbnail 0
Product image thumbnail 1
$26.39/ea
In Stock | 19 available at 5 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 1200
QED Part # 121516
Doorjamb Switches

Features

  • Compatible with Walkerduct infloor systems
  • The cap splits into two pieces to surround a power cord and plug or communication cable. It helps to keep wiring connections from being pulled out of the floor. The grommet provides a protected exit for wiring.
  • Brushed finish. Brass or aluminum material is durable and maintains its good looks even after years of service.
  • Removable bell cap. The fitting can be used without bell cap where a flush activation is desired.

Specifications

Technical Information

  • Services: Single Service
  • Service Location: Pedestal

Buy American Act Compliance

  • Country Of Origin: UNITED STATES OF AMERICA
  • Buy American Act Status: Buy American Act Compliant

Overview

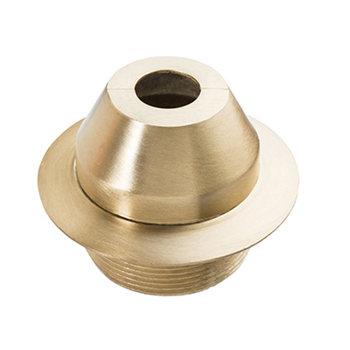

Long Description The 1200 Series is a bell-cap style pedestal fitting used in single service power and communication applications. The split bell cap design protects the electrical or communication cabling exiting the fitting from damage. Multiple fittings are required for two or more devices. This line of fittings is designed to be threaded directly into a 2" IPS (51mm) preset or afterset insert to activate Walkerduct Underfloor Duct. It can also be applied as an afterset on Walkercell Cellular Raceway. The 1200 Series is suitable for new amd renovation construction and is available in aluminum and brass finishes. All power fittings are UL listed to U.S. safety standards.
GTiN 00785007120004
Size 1.516 L x 1.547 W x 4.031 H In
Operating Temperature Maximum continuous +60C, minimum -30C
Type Pressure Sensitive Door & Canopy Switch
Material Metal
Applications For Residential/Commercial
Country of Origin USA
Temperature Rating -30 to 60 C
Family Brand Name Pass & Seymour
Buy American Compliant Yes
Actuator Push Button
Contact Configuration NO
Blade Dimensions 1.51 in L x 1.54 in W x 4.03 in H
Contact Rating 15 Amp, 120/250 VAC
Number of Poles 1 Pole
Action SP
Operating Cycles 30000
Sub Brand Pass & Seymour
Voltage null
