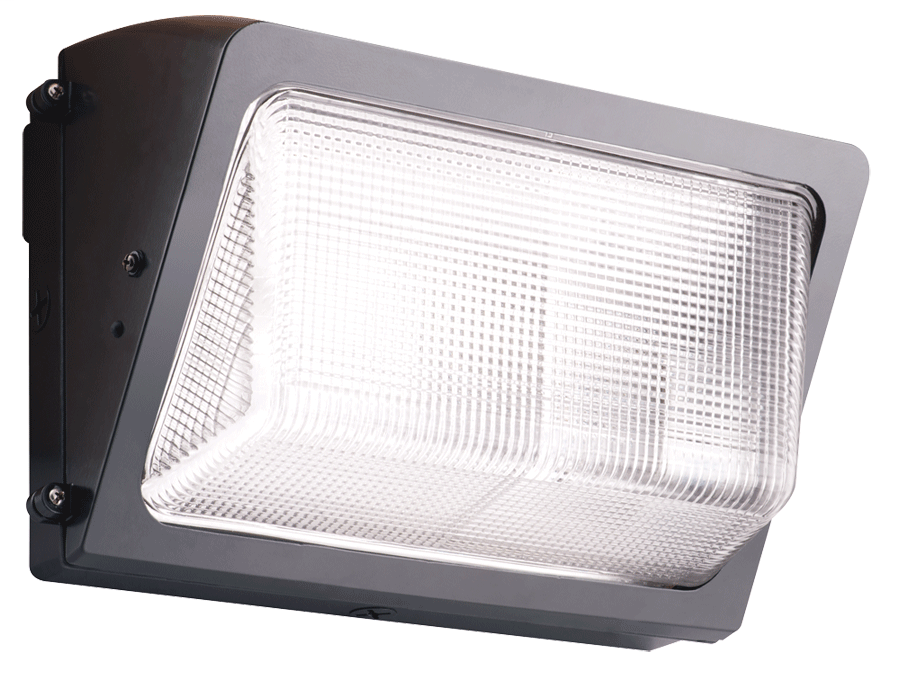

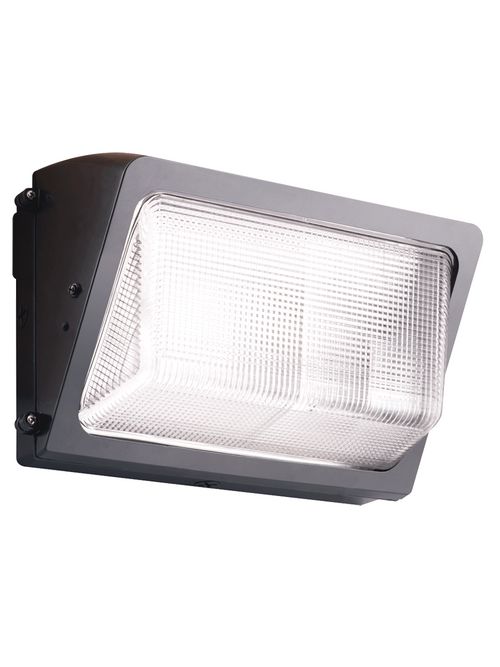

RAB WP2H100QT 100 W 120/208/240/277 Volt 14 x 7-1/4 x 9" Quad Tap Bronze HID Wall Pack
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # WP2H100QT
QED Part # 1390130
Metal Halide Wallpacks

Features

  • Precision die cast aluminum housing with durable polyester powder coating
  • Tempered Glass Refractor and Tempered Glass Lens
  • Drilling template for easy box mounting
  • Silicone gasket remains in place during relamping
  • Top, side and back conduit openings
  • Cutoff Glare Shield for Friendly Lighting
  • Long life lamp included

Specifications

Performance

  • Watts: 100W
  • Lumens: 9,000
  • Efficacy: 69.8 lm/W
  • Color Accuracy: CRI
  • L70 Lifespan: 0 hours
  • Type: HX-HPF QT
  • 120V: 1.2/1.2A
  • 208V: .7/.7A
  • 240V: .7/.8A
  • 277V: .6/.5A
  • Input Watts: 129W

Dimensions

  • Weight: 15.4 lbs

Listings

  • UL Listing: Suitable for wet locations. HID fixtures can be wired with 90°C supply wiring if supply wires are routed 3" away from ballast.
  • EISA 2007 Compliant: This product complies with the new law for metal halide ballast efficiency. This law goes into effect January 1st, 2008. Pulse Start offers Longer Lamp Life, Faster Startup and Faster Restrike.

Construction

  • Housing: Die cast aluminum, 1/2" NPS tapped holes top, both sides and back for conduit or photocontrol. Hinged refractor frame. Continuous silicone rubber gasket.
  • Reflector: Specular anodized aluminum, removable for installation. Symmetrical light pattern maximizes distance between fixtures.
  • Cutoff Lens: Tempered glass
  • Finish: Formulated for high durability and long-lasting color

Optical

  • Refractor: Prismatic optics designed to minimize glare and throw light down and out. Heat resistant borosilicate glass.

Electrical

  • Quad Tap: Fixture works with 120, 208, 240 and 277 Volts

Other

  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981318281
Long Description WALLPACK 100W MH QT HPF GLASS LENS AND
GTiN 00019813182810
Finish BRONZE
Type WALLPACKS
Mounting Type 10
Weight 15.4 lb
Wattage 100 W
Lumens 9,000 lm
Family Brand Name Rab Design Lighting
Lamp Type ED17
Ballast Type HX-HPF QT
Input Wattage 129 W
Efficacy 69.8 LPW
