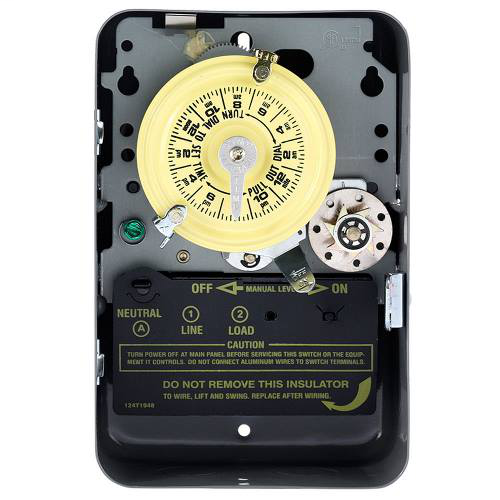

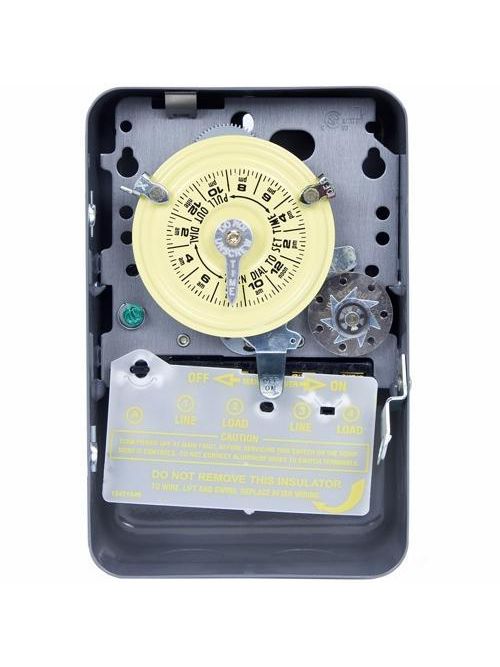

Intermatic T171 NEMA 1 125 VAC 60 Hz 40 Amp SPST Electromechanical Time Switch
Product image thumbnail 0
Product image thumbnail 1
$154.95/ea
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # T171
QED Part # 138122
Analog Timers

Features & Applications

Features

  • Controls loads up to 40 A per pole
  • Direct 24-Hour control of most loads
  • Up to 10 ON/OFF operations each day
  • Minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper and three day-skipper screws included

Applications

  • Indoor/Outdoor Lighting
  • Pool Heaters
  • Pumps
  • Blowers
  • Conveyors
  • Electric Fences
  • Fans
  • Filters
  • Signs
  • Various Other Electrical Loads
  • Commercial
  • Industrial
  • Residential

Specifications

  • Minimum ON/OFF Times: 1 hour
  • Maximum ON/OFF Operations: 10
  • Operation Mode: 24-hours
  • Has Override Switch: No
  • Electronic Ballast: 16 A, 277 VAC, 60 Hz
  • Motor: 2 HP, 24 FLA, 120 VAC, 60 Hz 5 HP, 28 FLA, 240 VAC, 60 Hz
  • Maximum Power Consumption (W): 3 W
  • Operating Temperature Max (°C): 54
  • Operating Temperature Max (F): 130
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Wire Size Max: #8 AWG
  • Wire Size Min: #14 AWG
  • Enclosure Type: Indoor Type 1 Metal
  • Product Height (in): 7.875
  • Product Height (mm): 200
  • Product Width (in): 5.125
  • Product Width (mm): 130.2
  • Product Depth (in): 3.4375
  • Product Depth (mm): 87.3
  • Warranty: 1-year

Documents & Downloads

Product Rating


Related Accessories and Parts

  • 22T338GR: Mounting Bracket for Intermatic Standardized Timer Mechanisms
  • 156T1948A: Trippers for T170, T1400, T1800 Series Includes 1 ON, 1 OFF, and 1 ON with Skipper Extension
  • 124T1948: Insulator for Single-Pole Time Switch (T101, T102, T171, T172)
  • 156T1978A: 1 Set of ON/OFF Trippers for T100, T7000, and WH40
  • WG1570-10D: 125 VAC, 60 Hz Motor for T101, T103, T105

Categories

Overview

Long Description Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series time switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
GTiN 00078275171015
Warranty Length 1 yr
Width 5.125 in
Operating Temperature -40 To 130 F
Voltage 125 Volt
Type Mechanical
Applications Commercial, Industrial, Residential, Outdoor, HVACR
Mounting Type Wall Mount
Depth 3.4375 in
Height 7.875 in
Frequency 60 Hz
Wattage 3 Watt
Temperature Rating -40 to 130 F
Family Brand Name Intermatic
Power Source 2 hp at 120 VAC, 5 h
Contact Configuration SPST - 1 NO
Power Consumption 3 W
Max Operating Temperature 130 degrees F
Min Operating Temperature -40 degrees F
Max Wire Size 8 AWG
Min Wire Size 14 AWG
Contact Rating 40 A at 120/240/277
Number of Poles 1 Pole
Enclosure NEMA 1
Action SPST
