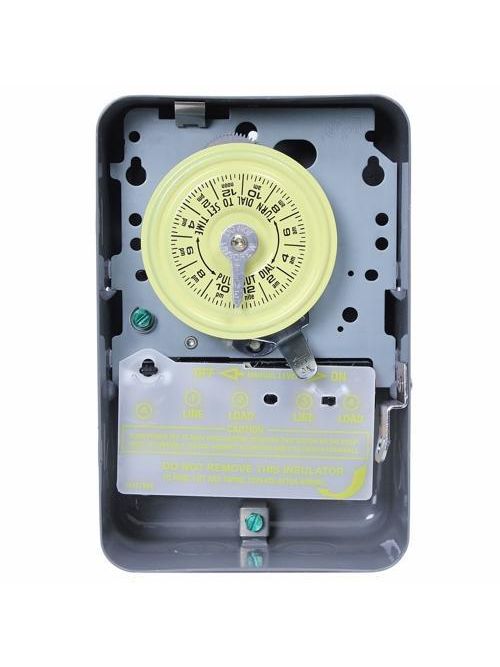

Intermatic T103 NEMA 1 Steel Case 125 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch
Product image thumbnail 0
Product image thumbnail 1
$109.99/ea
In Stock | 9 available at 6 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # T103
QED Part # 138083
Analog Timers

Features & Applications

Features

  • Direct 24-hour control of most loads
  • Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper included

Applications

  • Indoor/Outdoor Lighting
  • Signs
  • Filters
  • Electric Fences
  • Fans
  • Conveyors
  • Pool Heaters
  • Blowers
  • Pumps

Specifications

  • Minimum ON/OFF Times: 1 hour
  • Maximum ON/OFF Operations: 12
  • Input Voltages Display: 120 VAC, 60 Hz
  • Operation Mode: 24-hours
  • Has Override Switch: No
  • Electronic Ballast: 16 A, 277 VAC, 60 Hz
  • Motor: 2 HP, 24 FLA, 120 VAC, 60 Hz 5 HP, 28 FLA, 240 VAC, 60 Hz
  • Maximum Power Consumption (W): 3 W
  • Operating Temperature Max (°C): 54
  • Operating Temperature Max (F): 130
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Wire Size Max: #8 AWG
  • Wire Size Min: #14 AWG
  • Enclosure Type: Indoor Type 1 Metal
  • Product Height (in): 7.875
  • Product Height (mm): 200
  • Product Width (in): 5.125
  • Product Width (mm): 130.2
  • Product Depth (in): 3.4375
  • Product Depth (mm): 87.3
  • Warranty: 1-year

Documents & Downloads

Product Rating


Related Accessories and Parts

  • 22T338GR: Mounting Bracket for Intermatic Standardized Timer Mechanisms
  • 156T1978A: 1 Set of ON/OFF Trippers for T100, T7000, and WH40
  • 156T1978AD12: 12 Pack of 156T1978A Trippers for T100, T7000, and WH40
  • WG1570-10D: 125 VAC, 60 Hz Motor for T101, T103, T105

Categories

Overview

UPC 07827500004
Long Description The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
GTiN 00078275000049
Warranty Length 1 yr
Width 5.125 in
Size 5 LENGTH X 3 WIDTH X 7-3/4 HEIGHT IN, 12.70 LENGTH X 7.62 WIDTH X 19.69 HEIGHT CM
Operating Temperature -40 To 130 F
Voltage 125 Volt
Type Electromechanical
Material Metal
Applications Commercial, Industrial, Residential, Indoor, HVACR
Mounting Type Wall Mount
Depth 3.4375 in
Height 7.875 in
Frequency 60 Hz
Connection Type Teeter Type
Wattage 3 W
Input Voltage 120 V
Temperature Rating -40 to 130 F
Family Brand Name Intermatic
Power Source 2 hp
TC Connection Teeter Type
Contact Configuration DPST - 2 NO
Amperage 40 Amp
Power Consumption 3 W
Max Operating Temperature 130 degrees F
Blade Dimensions 5 in L x 3 in W x 7-3/4 in H
Min Operating Temperature -40 degrees F
Max Wire Size 8 AWG
Min Wire Size 14 AWG
Contact Rating 40 A at 120 - 277 VA
Number of Poles 2
Enclosure NEMA 1 Steel
Action DPST
