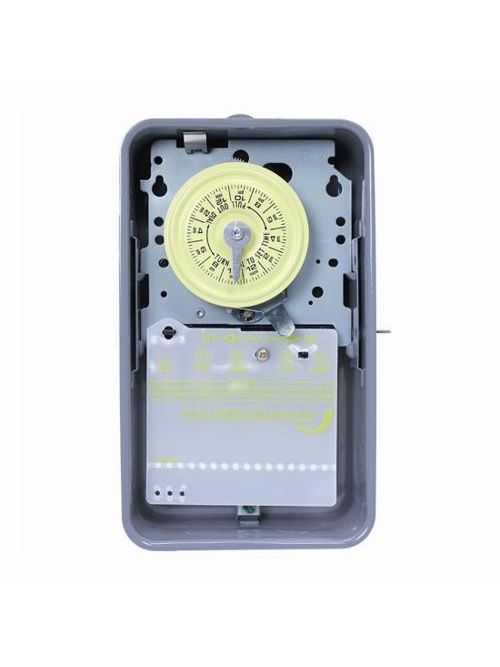

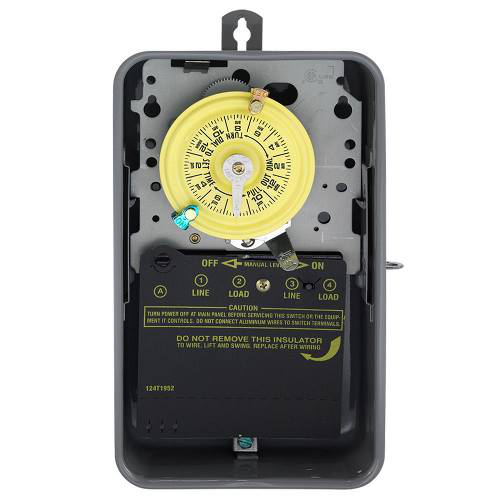

Intermatic T101R NEMA 3R Steel Case 125 VAC 60 Hz 40 Amp SPST Electromechanical Time Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$141.99/ea
In Stock | 6 available at 4 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # T101R
QED Part # 138093
Analog Timers

Features & Applications

Features

  • Direct 24-hour control of most loads
  • Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper included

Applications

  • Indoor/Outdoor Lighting
  • Signs
  • Filters
  • Electric Fences
  • Fans
  • Conveyors
  • Pool Heaters
  • Blowers
  • Pumps

Specifications

  • Minimum ON/OFF Times: 1 hour
  • Maximum ON/OFF Operations: 12
  • Input Voltages Display: 120 VAC, 60 Hz
  • Operation Mode: 24-hours
  • Has Override Switch: No
  • Electronic Ballast: 16 A, 277 VAC, 60 Hz
  • Motor: 2 HP, 24 FLA, 120 VAC, 60 Hz 5 HP, 28 FLA, 240 VAC, 60 Hz
  • Maximum Power Consumption (W): 3 W
  • Operating Temperature Max (°C): 54
  • Operating Temperature Max (F): 130
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Wire Size Max: #8 AWG
  • Wire Size Min: #14 AWG
  • Enclosure Type: Indoor/Outdoor Type 3R Metal
  • Product Height (in): 10.125
  • Product Height (mm): 257.2
  • Product Width (in): 6.5
  • Product Width (mm): 165.1
  • Product Depth (in): 3.625
  • Product Depth (mm): 92.1
  • Warranty: 1-year

Documents & Downloads

Product Rating


Related Accessories and Parts

  • 22T338GR: Mounting Bracket for Intermatic Standardized Timer Mechanisms
  • 156T1978A: 1 Set of ON/OFF Trippers for T100, T7000, and WH40
  • 156T1978AD12: 12 Pack of 156T1978A Trippers for T100, T7000, and WH40
  • WG1570-10D: 125 VAC, 60 Hz Motor for T101, T103, T105

Overview

Long Description The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
GTiN 00078275000056
Warranty Length 1 yr
Width 6.5 in
Size 5-1/2 LENGTH X 4 WIDTH X 9-3/8 HEIGHT IN, 13.97 LENGTH X 10.16 WIDTH X 23.81 HEIGHT CM
Operating Temperature -40 To 130 F
Voltage 125 Volt
Type Electromechanical
Applications Commercial, Industrial, Residential, Outdoor, HVACR
Mounting Type Wall Mount
Depth 3.625 in
Height 10.125 in
Connection Type Teeter Type
Wattage 3 Watt
Input Voltage 120 V
Family Brand Name Intermatic
TC Connection Teeter Type
Contact Configuration SPST - 1 NO
Amperage 40 Amp
Max Operating Temperature 130 degrees F
Min Operating Temperature -40 degrees F
Max Wire Size 8 AWG
Min Wire Size 14 AWG
Contact Rating 40 A at 120 - 480 VA
Number of Poles 1 Pole
Enclosure NEMA 3R Steel
Action SPST
Material Steel
Temperature Rating -40 to 130 F
Power Source 2 hp at 120 VAC, 5 h
Power Consumption 3 W
Blade Dimensions 5-1/2 in L x 4 in W x 9-3/8 in H
