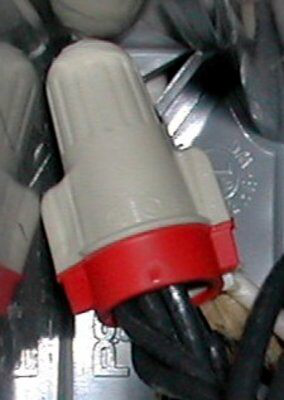

3M T/R+Keg Performance Plus Super Tan/Red 25000/Box Wire Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.12/ea
ea
Adding...
Order in multiples of 25000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # T/R+Keg
QED Part # 1647415
Twist-On

Features

  • Strong bite for a secure, reliable connection
  • Flexible spring expands for greater wire range and reuse
  • 3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.
  • 3M™ Performance Plus™ Wire Connectors are UL Listed for 600 volts on copper wire. They are available in five color/wire range options: O/B+ (orange/blue) 2 #22 - 3 #12 AWG; T/Y+ (tan/yellow) 2 #22 - 3 #12 AWG; R/Y+ (red/yellow) 2 #18 - 2 #8 AWG; T/R+ (tan/red) 2 #18 - 5 #12 AWG; B/G+ (blue/gray) 4 #14 - 2 #6 AWG.
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • UL Listed

Specifications

  • 3M ID: 80611237779
  • Agency Approvals: UL, CE, and CSA
  • Brand: 3M™
  • China RoHS - Below MCV: Yes
  • Conductor Sizes: 22 - 8 AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Family: 3M™ Performance Plus Wire Connector
  • Flame Retardant: Yes
  • Material: Plastic
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 8 AWG
  • Minimum Wire Gauge: 22 AWG
  • Packaging: Keg
  • Product Color: Red || Tan
  • Product Type: Connector
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Units per Case: 25000
  • Voltage Rating: 600 Volt

Overview

UPC 05112854456
Long Description 3M Performance Plus Wire Connectors are designed with a uniquely flexible springthat has generous room for expansion and a strong bite for a secure connection. Becauseof their increased wire range, just three Performance Plus wire connectors handle thework of eight standard connectors. And theflexible skirt helps prevent copper exposure for enhanced safety.
GTiN 00051128544563
Color Tan,Red
Type Wire
Temperature Rating 221 F
Family Brand Name 3M
TC Connection Twist On
Voltage null
Material Plastic
Product Type Connector
Conductor Size 22-8 AWG
Connection Type Wire
Max Operating Temperature 221 degrees F
