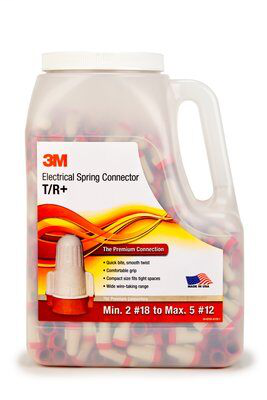

3M T/R+JUG 750/Jug Super Tan/Red Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.15/ea
In Stock | 69000 available at 8 locations
ea
Adding...
Order in multiples of 750 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # T/R+JUG
QED Part # 1647414
Twist-On

Features

  • Strong bite for a secure, reliable connection
  • Flexible spring expands for greater wire range and reuse
  • 3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • 3M™ Performance Plus™ Wire Connectors are UL Listed for 600 volts on copper wire. They are available in five color/wire range options: O/B+ (orange/blue) 2 #22 - 3 #12 AWG; T/Y+ (tan/yellow) 2 #22 - 3 #12 AWG; R/Y+ (red/yellow) 2 #18 - 2 #8 AWG; T/R+ (tan/red) 2 #18 - 5 #12 AWG; B/G+ (blue/gray) 4 #14 - 2 #6 AWG.
  • UL Listed

Specifications

  • 3M ID: 80611454523
  • Agency Approvals: UL and CSA
  • Boxes per Case: 8
  • Brand: 3M™
  • Conductor Sizes: 22 - 8 AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Family: 3M™ Performance Plus Wire Connector
  • Flame Retardant: Yes
  • Material: Plastic
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 8 AWG
  • Minimum Wire Gauge: 22 AWG
  • Packaging: Jug
  • Product Color: Red || Tan
  • Product Type: Connector
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Voltage Rating: 600 Volt

Overview

UPC 05112854455
Long Description Smooth, comfortable feelCompact size and yellow miniskirtQuick bite spring designIncorporates a spring mechanism to spin on quickly and tighten down easilyFlame-retardant, polypropylene and thermoplastic elastomer constructionWithstands temperatures up to 221 F (105 C)600V-rated for building wire and 1000V-rated for signs, fixtures or luminairesUL Listed, CE Marking and CSA/IEC Certified
GTiN 00051128544556
Length 1.17 in
Color Tan/Red
Type Fully Insulated, Wing, Straight Angled, Standard, Flame-Retardant
Diameter 0.76 in
Material Plastic
Product Type Connector
Conductor Size 22-8 AWG
Applications Used to Electrically Connect Two or more Conductor Ends in A Pigtail Application and Insulate the Connection, for Residential Wiring Job and Wide Range Applications
Connection Type Wire
Temperature Rating 105 C
Family Brand Name 3M
Insulation Material Polypropylene, Therm
Contact Material Spring Steel
TC Connection Twist On
Max Operating Temperature 221 degrees F
Sub Brand Performance Plus
Voltage null
