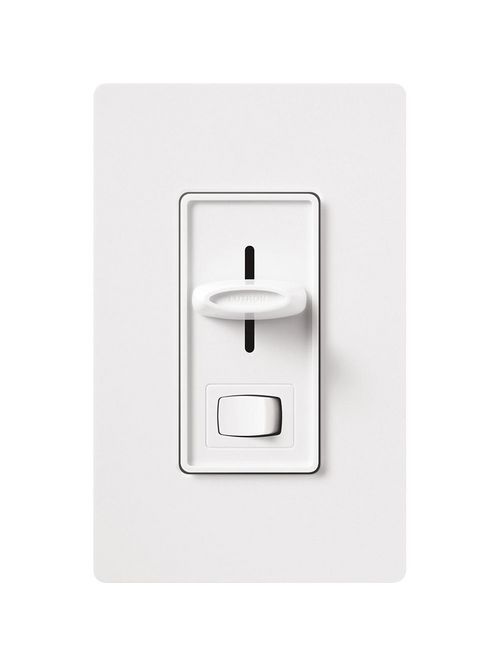

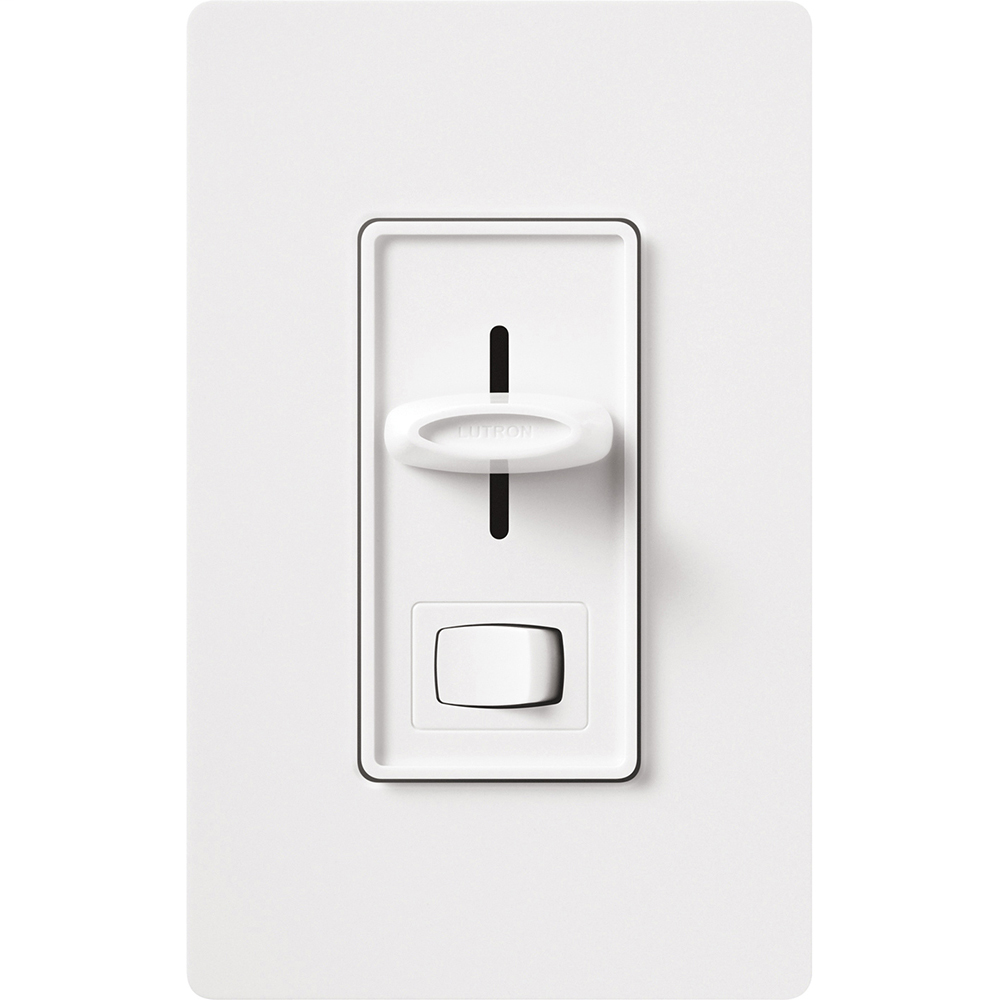

Lutron SF-10P-WH 120 Volt White 1-Pole Fluorescent Dimmer
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron Electronics
Mfg Catalog # SF-10P-WH
QED Part # 137560
Residential Dimmers

Features

  • Controls 8 A 3-wire LED driver or fluorescent ballast loads
  • Rocker switch returns light to light level indicated by slider
  • Slide up to brighten, down to dim.

Specifications

  • Wattage: 960 W
  • Mounting: Wallbox
  • Standard: UL, CSA
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Sub Brand: Skylark
  • Insulation: Plastic
  • Actuator: Rocker/Slide
  • Connection: Wire Leads
  • Material: Plastic/Metal
  • Voltage Rating: 120 VAC
  • Application: Lighting Control
  • Frequency Rating: 50 to 60 Hz
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.32 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Type: Dimmer with on/off switch, single-pole
  • Country of Origin: US

Categories

Overview

Long Description Skylark Dimmer with On/Off Switch, Fluorescent or LED Dimming with 3-Wire Ballasts and Drivers, single-pole, preset, 120V/8A in white
GTiN 00027557310208
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Voltage 120 Volt
Type Dimmer With On/off Switch,Single-pole
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin USA
Standard CSA,UL
Frequency 50 Hz
Connection Type Wire Leads
Wattage 960 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Wire Leads
Actuator Rocker,Slide
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Skylark
UPC 02755731020
