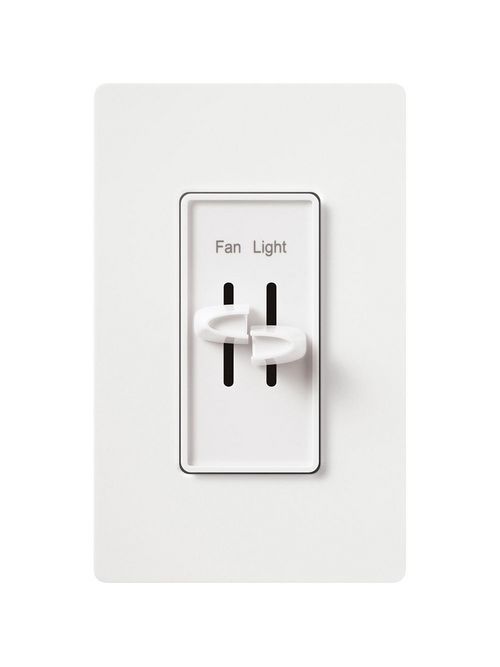

Lutron S2-LFSQH-WH 1.5 Amp 300 W 120 Volt White 1-Pole Incandescent/Halogen Fan/Light Speed Control Dimmer
Product image thumbnail 0
Product image thumbnail 1
$36.89/ea
In Stock | 6 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron Electronics
Mfg Catalog # S2-LFSQH-WH
QED Part # 137982
Fan Controls & Switches

Features

  • Fan control (left) Slide up to on/increase speed, down to decrease/off
  • 3 quiet fan speeds designed to prevent motor hum (for use with only one ceiling paddle fan)
  • Dimmer (right) Slide up to on/brighten, down to dim/off.

Specifications

  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Sub Brand: Skylark
  • Wattage: 300 W light
  • Voltage Rating: 120 V
  • Actuator: Slide switch
  • Connection: Wire Leads
  • Contact Rating: 1.5 A fan
  • Amperage Rating: 1.5 A fan
  • Contact Configuration: N-O
  • Application: Lighting and Fan Control
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Pack Description: Clamshell
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.31 L
  • Length Imperial: 3.908 IN
  • Width Imperial: 2.82 IN
  • Height Imperial: 5.589 IN
  • Type: Dual slide-to-off fan/light control, clamshell packaging
  • Country of Origin: CN

Overview

Long Description Skylark Fan/Light Control, Single-pole, quiet 3-speed and dimmer, 120V/300W light, 1.5A fan, clamshell packaging in white
GTiN 00027557684385
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Voltage 120 Volt
Type Clamshell Packaging,Dual Slide-to-off Fan/light Control
Applications Fan,Lighting
Mounting Type Wallbox
Country of Origin China
Connection Type Wire Leads
Wattage 300 Watt
Family Brand Name Lutron
TC Connection Wire Leads
Actuator Slide Switch
Contact Configuration N-O
Amperage 1.5 Amp
Enclosure Material Plastic
Contact Rating 1.5 A
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Skylark
UPC 02755768438
