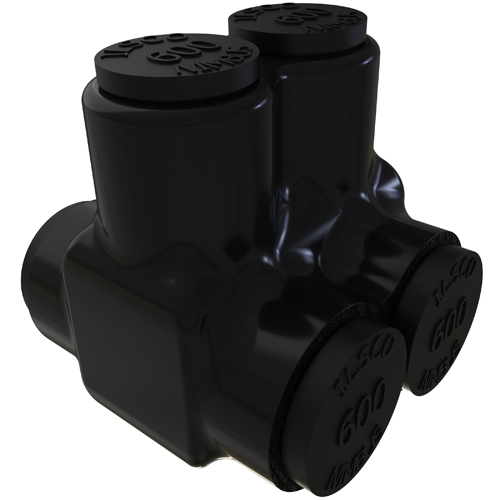

Ilsco PBTD-2-500 UL/CSA Listed 600 MCM 4 AWG 2-Port Dual Rated Aluminum Insulated Mechanical Connector

$71.99/ea

In Stock | 70 available at 6 locations

Adding...

Already a Customer? Log in to view your pricing

Manufacturer	Ilsco
Mfg Catalog #	PBTD-2-500
QED Part #	1639736

Multi-Tap Connectors

Specifications

UPC Code: 78366907840
UNSPSC Code: 39121408
Dual Rated: TRUE
Conductor Range CU Stranded (Primary, run, main, line): 600 kcmil - 4 Str
Conductor Size CU (Primary, run, main, line): 600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
Conductor Range AL Stranded (Primary, run, main, line): 600 kcmil - 4 Str
Conductor Size AL (Primary, run, main, line): 600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
Drive Size Main: 8-Mar
Drive Type Main: Internal Hex
Number of Wire Binding Screws per Port: 1
Wire Binding Screw Size: 13/16
Wire Binding Screw Size (mm): 33426.4
Wire Binding Torque: 375
Length (IN): 2.781
Width (IN): 3.031
Width (mm): 76.9874
Height (IN): 3.034
Height (mm): 77.0636
Weight (LB): 0.864
Max Insulation OD (IN): 1.115
Max Insulation OD (mm): 28.321
Material: Aluminum
Conductor Material: Copper,Aluminum
Connector Finish: Tin
Insulation: Plastisol
Wire Binding Hardware Material: Aluminum
Wire Binding Hardware Finish: Tin
Color: Black
Cap Color Main: Black
Cap Color Tap: Black
Environmental Conditions: Cold temperature rated to -45⁰C
Flammability Rating: Insulation rated per UL 94
Temperature Rating: 90°C
Voltage Rating: 600 V
CSA File Number: LR-29601
CSA Standard: C22.2 No. 65-03
UL Control Number: 453G
UL File Number: E6207
UL / CULUS Specification: UL 486A/B Listed
Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Connection: Mechanical
Conductor Type: Stranded
Contains DE-OX: TRUE
Number of Conductors: 2
Number of Poles: 1
Number of Ports / Wireways: 2
Number of Ports Main: 2
Number of Usable Ports: 2
Number of Usable Taps: 2
Replacement Parts: PORTPLUG-500, SCREWCAP-500
Bag Quantity: 1
Upsell: PBTD-2-500-F

Overview

Long Description	Nimbus Insulated Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 600 kcmil - 4 Str, Contains DE-OX, 2 conductors, 2 ports/wireways, Plastisol insulation, Drive Type Main 3/8 Internal Hex, rated for 600 V, primary color Black, 1 poles,
GTiN	00783669078404
Color	Black
Type	PBTD:INS BLK TWO SIDE TAP
Material	Aluminum
Applications	Insulated Multi-Tap Connector, Dual Sided Entry
Temperature Rating	90 C
Family Brand Name	ILSCO
Number of Ports	2
Sub Brand	Nimbus
Finish	Tin Plated
Voltage	null
Number of Conductors	2
TC Connection	Mechanical
Environmental Conditions	Cold temperature rat
