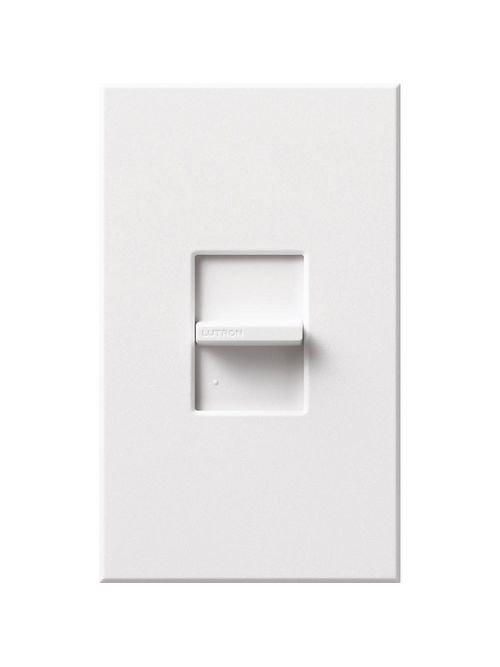

Lutron NTF-10-277-WH 277 VAC White 1-Pole Fluorescent Slide Dimmer
Product image thumbnail 0
Product image thumbnail 1
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron Electronics
Mfg Catalog # NTF-10-277-WH
QED Part # 137971
Residential Dimmers

Features

  • Controls 8 A LED driver/3-wire fluorescent ballast dimmer loads
  • Slide up to brighten, down to dim.

Specifications

  • Actuator: Slide
  • Wattage: 2216 W
  • Mounting: Wallbox
  • Sub Brand: Nova T
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Voltage Rating: 277 V
  • Connection: Wire Leads
  • Standard: UL, CSA, NOM
  • Material: Plastic/Metal
  • Application: Lighting Control
  • Frequency Rating: 50 to 60 Hz
  • Type: Slide-to-off dimmer, single-pole
  • Size: 4.56 in (116 mm) x 2.75 in (70 mm)
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.54 L
  • Length Imperial: 4.063 IN
  • Width Imperial: 5.219 IN
  • Height Imperial: 2.844 IN
  • Operating Temperature: 0 to 40 degrees Celsius
  • Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
  • Country of Origin: US

Overview

Long Description Nova T Dimmer, Fluorescent or LED Dimming with 3-Wire Ballasts and Drivers, Single-pole (small control), 277V/8A in white
GTiN 00027557699280
Size 4.56 in (116 mm) x 2.75 in (70 mm)
Operating Temperature 0 To 40 C
Voltage 277 Volt
Type Single-pole,Slide-to-off Dimmer
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin USA
Standard CSA,NOM,UL
Frequency 50 Hz
Connection Type Wire Leads
Wattage 2216 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Wire Leads
Actuator Slide
Environmental Conditions 0 To 90% Humidity,In
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Nova T
UPC 02755769928
