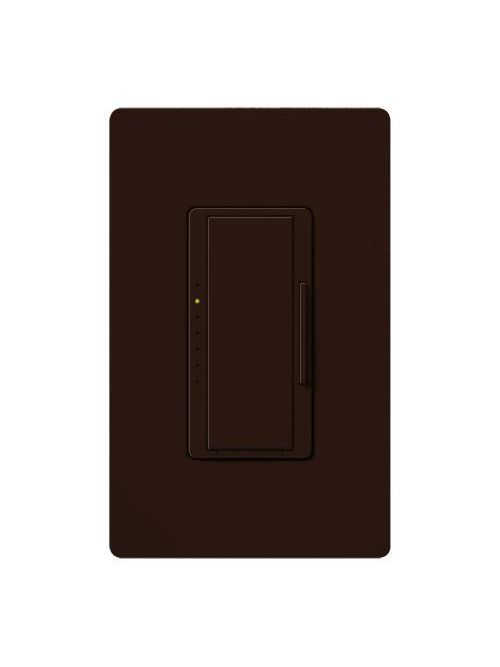

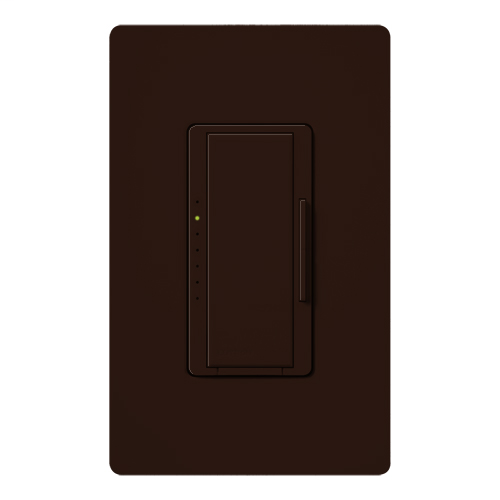

Lutron MA-600-BR 600 W 120 Volt Brown 1-Pole/Multi-Location Incandescent/Halogen Digital Fade Dimmer
Product image thumbnail 0
Product image thumbnail 1
$42.49/ea
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron Electronics
Mfg Catalog # MA-600-BR
QED Part # 137496
Residential Dimmers

Features

  • Controls 600 W incandescent or halogen loads
  • Provides true dimming from each location (with companion dimmers).

Specifications

  • Wattage: 600 W
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Sub Brand: Maestro
  • Actuator: Tapswitch
  • Insulation: Plastic
  • Voltage Rating: 120 V
  • Material: Plastic/Metal
  • Connection: Screw terminals
  • Application: Lighting Control
  • Frequency Rating: 50 to 60 Hz
  • Standard: UL, CSA, NOM, ISO 9001
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.27 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Operating Temperature: 0 to 40 degrees Celsius
  • Type: Digital fade dimmer, multi-location/single-pole
  • Environmental Conditions: 0 to 90% humidity, non-condensing
  • Country of Origin: MX

Categories

Overview

Long Description This product will be obsolete starting April 2, 2021. The replacement is MACL-153M-BR
GTiN 00027557687805
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Brown
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type Digital Fade Dimmer,Multi-location/single-pole
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin Mexico
Standard CSA,ISO 9001,NOM,UL
Frequency 50 Hz
Connection Type Screw-Type Terminals
Wattage 600 Watt
Family Brand Name Lutron
Insulation Material Plastic
Light Source Incandescent/Halogen,Incandescent,Halogen
Control Type Main Control
TC Connection Screw terminals
Actuator Tapswitch
Environmental Conditions 0 To 90% Humidity,Non-condensing
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Maestro
UPC 02755768780
