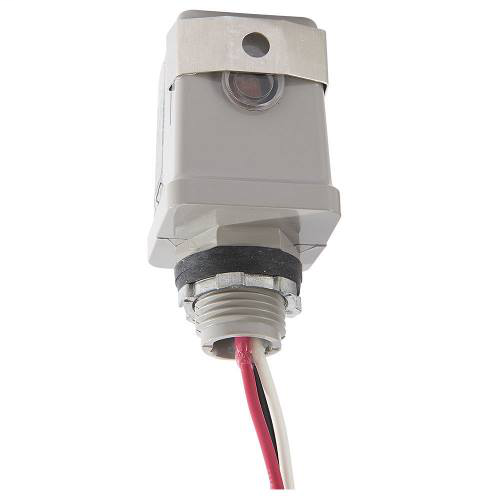

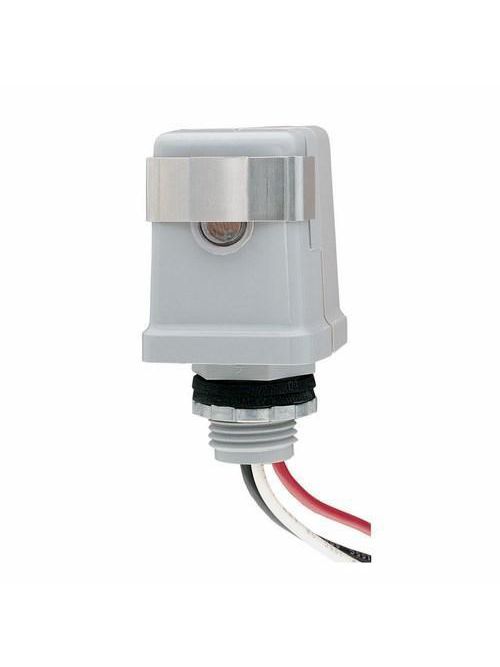

Intermatic K4121C 120 VAC 50/60 Hz 1800 W Stem Mount Thermal Photocontrol
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$16.07/ea
In Stock | 19 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # K4121C
QED Part # 138087
Photocell

Features & Applications

Features

  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Delay feature prevents unwanted OFF switching
  • Plastic and die-cast metal housing options
  • 1⁄2"-14 NPSM threaded stem
  • Washer gasket and locking nut included
  • #18 AWG, 9" wire leads

Applications

  • Exterior Lighting
  • Street Lighting
  • Parking Lot
  • Pedestrian Pathway
  • Landscape Lighting

Specifications

  • Photocontrol Style: Stem Mount
  • Photocontrol Sensor Location: Side
  • Inductive: 8.3 A, 120 VAC, 50/60 Hz
  • Incandescent Load Ratings: 15 A, 120 VAC, 50/60 Hz
  • Activation Off: 3 to 15 fc
  • Activation On: 1 to 5 fc
  • Sensor Time Delay: 30 sec to 90 sec
  • Wire Lead Length (in): 9
  • Wire Lead Length (mm): 228.6
  • Wire Size Max: #18 AWG
  • Operating Temperature Max (°C): 70
  • Operating Temperature Max (F): 158
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Cover Color: Gray
  • Housing Material: Polycarbonate
  • Product Weight (kg): 0.095
  • Product Weight (lbs): 0.21
  • Product Height (in): 3
  • Product Height (mm): 76.2
  • Product Width (in): 1 9/16
  • Product Width (mm): 39.7
  • Product Depth (in): 1 9/16
  • Product Depth (mm): 39.7
  • Warranty: 2-year limited
  • Fail Mode: ON

Documents & Downloads

Product Rating



Related Accessories and Parts

  • 22LG116: Replacement Light Guard for Thermal Photocontrols (K4100 and K4200 Series)
  • K42-SW-A: Swivel Arm
> View Substitutes (2)

Categories

Overview

Long Description These photocontrols install on standard outdoor light fixtures and electrical boxes with 1?2"-14 NPSM thread or 7?8" punch-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.
GTiN 00078275002012
Finish Matt
Warranty Length 2 yr
Width 1 9/16 in
Size 1-9/16 LENGTH X 1-9/16 WIDTH X 3 DEPTH IN, 4 LENGTH X 4 WIDTH X 7.6 DEPTH CM
Color Gray
Operating Temperature 158 degrees F
Type Thermal
Material Thermoplastic
Applications Dusk to Dawn Lighting Control
Mounting Type Stem Mount
Depth 1 9/16 in
Height 3 in
Weight 0.21 lb
Standard CSA,California Title 24 Compliant,Title CA 20 Listed,UL Recognized
Frequency 50/60 Hz
Connection Type Color Coded Lead
Family Brand Name Intermatic
Power Rating 1800 W
TC Connection Color Coded Lead
Wire Length 228.6 mm
Power Consumption 1 W
Max Operating Temperature 158 degrees F
Min Operating Temperature -40 degrees F
Max Wire Size 18 AWG
Sensor Type Separate Light Sensor
Voltage 120 Volt
