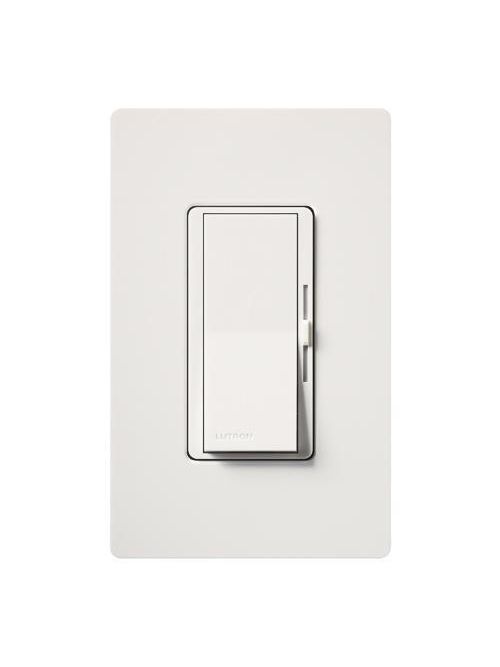

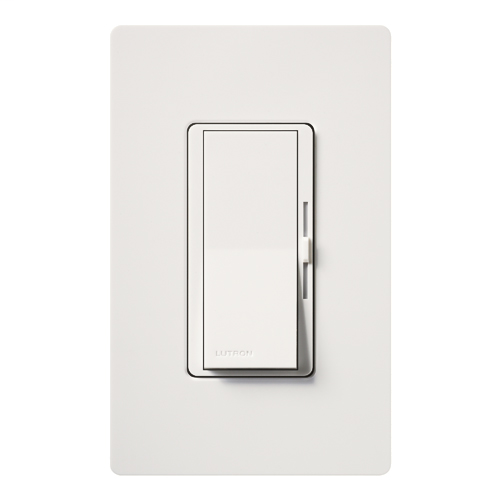

Lutron DVELV-300PH-WH 300 W 120 Volt White 1-Pole Electronic Low Voltage Preset Dimmer
Product image thumbnail 0
Product image thumbnail 1
$102.99/ea
In Stock | 3 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron Electronics
Mfg Catalog # DVELV-300PH-WH
QED Part # 137808
Residential Dimmers

Features

  • Controls 300 W electronic low-voltage loads
  • Paddle turns on/off
  • Slide up to brighten, down to dim.

Specifications

  • Wattage: 300 W
  • Sub Brand: Diva
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Connection: Wire Leads
  • Standard: UL, CSA, NOM
  • Actuator: Paddle switch
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Voltage Rating: 120 VAC
  • Type: Dimmer, single-pole
  • Application: Lighting Control
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Pack Description: Clamshell
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.32 L
  • Length Imperial: 3.9 IN
  • Width Imperial: 2.57 IN
  • Height Imperial: 5.85 IN
  • Operating Temperature: 0 to 40 degrees Celsius
  • Country of Origin: US

Overview

UPC 02755713592
Long Description Diva Dimmer - Gloss Finish, Electronic Low-Voltage, Single-pole, 120V/300W clamshell packaging in white
GTiN 00027557135924
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Operating Temperature 0 - 40 C
Voltage 120 Volt
Type Paddle
Material Plastic
Applications For Lighting Control
Mounting Type Wallbox
Country of Origin USA
Standard CSA,NOM,UL
Frequency 60 Hz
Connection Type Wire Lead
Wattage 300 Watt
Family Brand Name Lutron
Insulation Material Plastic
Power Rating 300 W
TC Connection Wire Leads
Actuator Paddle Switch
Blade Dimensions 2.94 in W x 4.69 in H
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Diva
