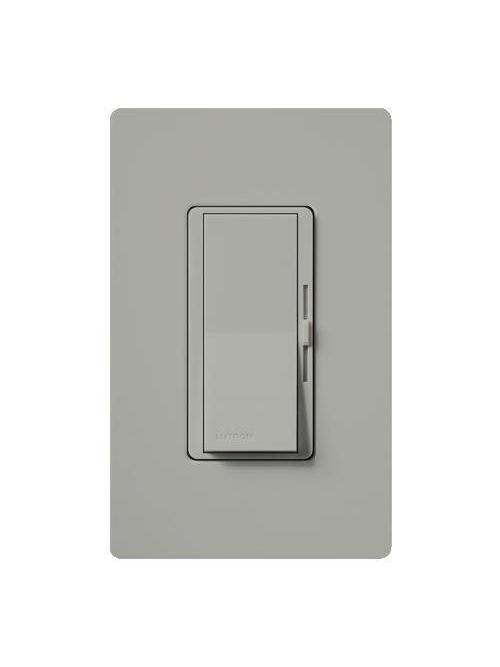

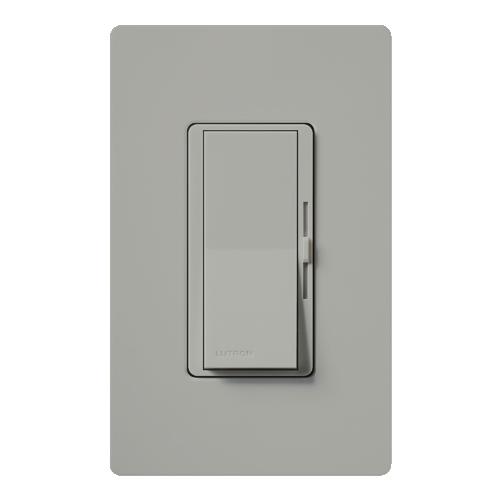

Lutron DV-603P-GR Diva Incandescent 600 W 3-Way Gray Dimmer
Product image thumbnail 0
Product image thumbnail 1
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron Electronics
Mfg Catalog # DV-603P-GR
QED Part # 137688
Residential Dimmers

Features

  • Controls 600 W incandescent or halogen loads
  • Paddle turns on/off
  • Slide up to brighten, down to dim.

Specifications

  • Wattage: 600 W
  • Sub Brand: Diva
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Type: Dimmer, 3-way
  • Connection: Wire Leads
  • Standard: UL, CSA, NOM
  • Actuator: Paddle switch
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Voltage Rating: 120 VAC
  • Application: Lighting Control
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.27 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Operating Temperature: 0 to 40 degrees Celsius
  • Country of Origin: CN

Overview

Long Description This product will be obsolete starting April 2, 2020. The replacement is DVCL-153P-GR
GTiN 00027557688086
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Black,Satin Colors,Bluestone,Light Almond,Sea Glass,Almond,Snow,Plum,Limestone,Biscuit,Brown,Eggshell,Palladium,Gray,White,Stone,Taupe,Ivory
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type 3-Way,Dimmer
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin China
Standard CSA,NOM,UL
Frequency 60 Hz
Connection Type Wire Leads
Wattage 600 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Wire Leads
Actuator Paddle Switch
Max Wattage 600 W
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Bulb Compatibility Incandescents,Halogens
Sub Brand Diva
UPC 02755768808
