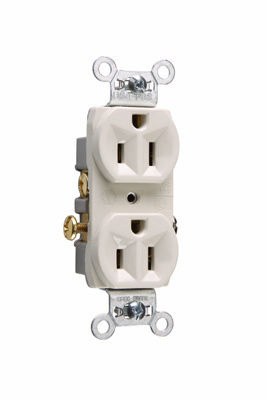

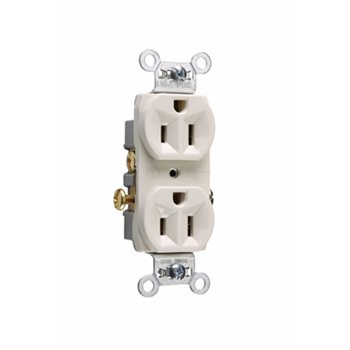

Pass & Seymour CR15-LA 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Light Almond Nylon Face Corrosion-Resistant Duplex Receptacle

$1.94/ea

In Stock | 25 available at 1 location

Adding...

Already a Customer? Log in to view your pricing

Duplex

Features

Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
.032 inch thick, brass, triple-wipe power contacts for lasting retention.
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
Impact-resistant nylon face and thermoplastic back body.
Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
Terminal compartments isolated from each other for positive conductor containment.
Tri-drive terminal and mounting screws.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Country Of Origin: MX
Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Certifications: CULUS
Amperage: 15 A
NEMA Rating: 5-15R
Voltage: 125.0 V
Product Line: Pass & Seymour
Number of Wires: 3.0
Wire Size: #14 - #10
Connection: Side wire
Application Sector: Commercial
Number of Poles: Double Pole
Standard: UL498, CSA C22.2 No. 42
Environmental Conditions: Flammability: UL94 V2
Dielectric Strength: Withstands 1500V minimum
Special Features: Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and thermoplastic back body. Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.

Long Description	Commercial Spec Grade Duplex Receptacle, Side Wire 15amp 125volt, Gray
GTiN	00785007608038
Width	1.322 in
Size	1.322 L x .780 W x 3.281 H In
Color	Light Almond
Voltage	125 Volt
Type	Receptacles
Material	Nylon
Conductor Size	14 - 10 AWG
Applications	Commercial
Mounting Type	Wall
Depth	0.78 in
Height	3.281 in
Grade	Commercial
Country of Origin	Mexico
Wire Size	14-10 AWG
Capacity	Duplex
Connection Type	Side Wired
Family Brand Name	Pass & Seymour
Certifications	CULUS
TC Connection	Side wire
Amperage	15 Amp
Dielectric Strength	1500 V
Blade Dimensions	1.322 in L x 0.780 in W x 3.281 in H
Number of Poles	2 Pole
Number of Wires	3
UNSPSC	39121406
Sub Brand	Pass & Seymour
UPC	78500760803
NEMA	5-15R
