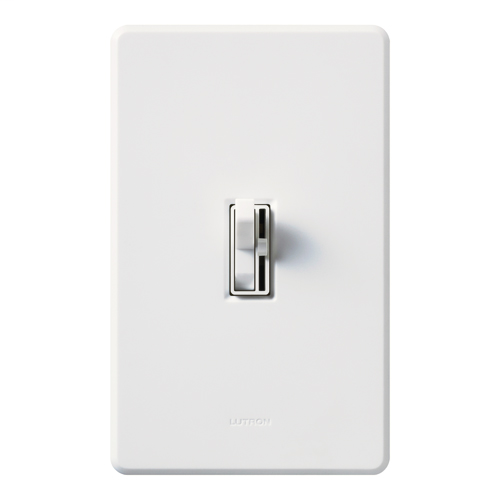

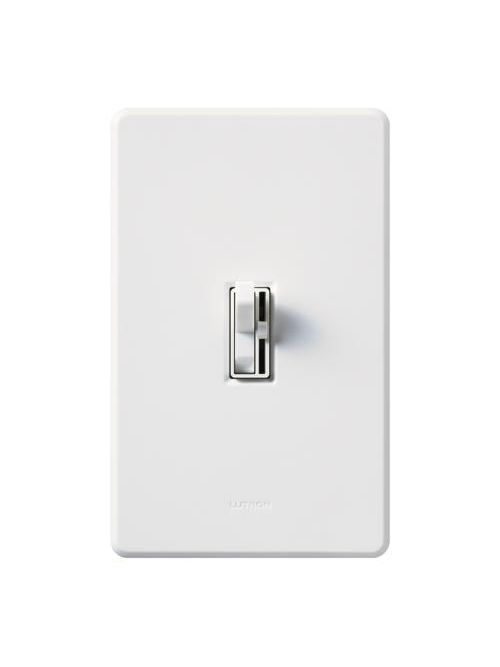

Lutron AYLV-600PH-WH 120 VAC 600 VA White 1-Pole Magnetic Low Voltage Preset Dimmer
Product image thumbnail 0
Product image thumbnail 1
$41.79/ea
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron Electronics
Mfg Catalog # AYLV-600PH-WH
QED Part # 137866
Residential Dimmers

Features

  • Controls 600 VA (450 W) magnetic low-voltage loads
  • Toggle turn lights on/off
  • Slide up to brighten, down to dim.

Specifications

  • Wattage: 450 W
  • Standard: UL cUL
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Sub Brand: Ariadni
  • Insulation: Plastic
  • Actuator: Toggle switch
  • Material: Plastic/Metal
  • Voltage Rating: 120 VAC
  • Connection: Screw terminals
  • Application: Lighting Control
  • Frequency Rating: 50 to 60 Hz
  • Size: 2.86 in (73 mm) x 4.60 in (117 mm)
  • Environmental Conditions: Indoor use only
  • Pack Description: Clamshell
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.21 L
  • Length Imperial: 1.87 IN
  • Width Imperial: 3.92 IN
  • Height Imperial: 5.81 IN
  • Operating Temperature: 0 to 40 degrees Celsius
  • Type: Preset dimmer, single-pole, clamshell packaging
  • Country of Origin: MX

Categories

Overview

Long Description Ariadni Dimmer, Magnetic Low-Voltage, Single-pole, preset, 120V/600VA (450W) clamshell packaging in white
GTiN 00027557510219
Size 2.86 in (73 mm) x 4.60 in (117 mm)
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type Clamshell Packaging,Preset Dimmer,Single-pole
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin Mexico
Standard UL CUL
Frequency 50 Hz
Connection Type Screw-Type Terminals
Wattage 450 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Screw terminals
Actuator Toggle Switch
Environmental Conditions Indoor Use Only
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Ariadni
UPC 02755751021
