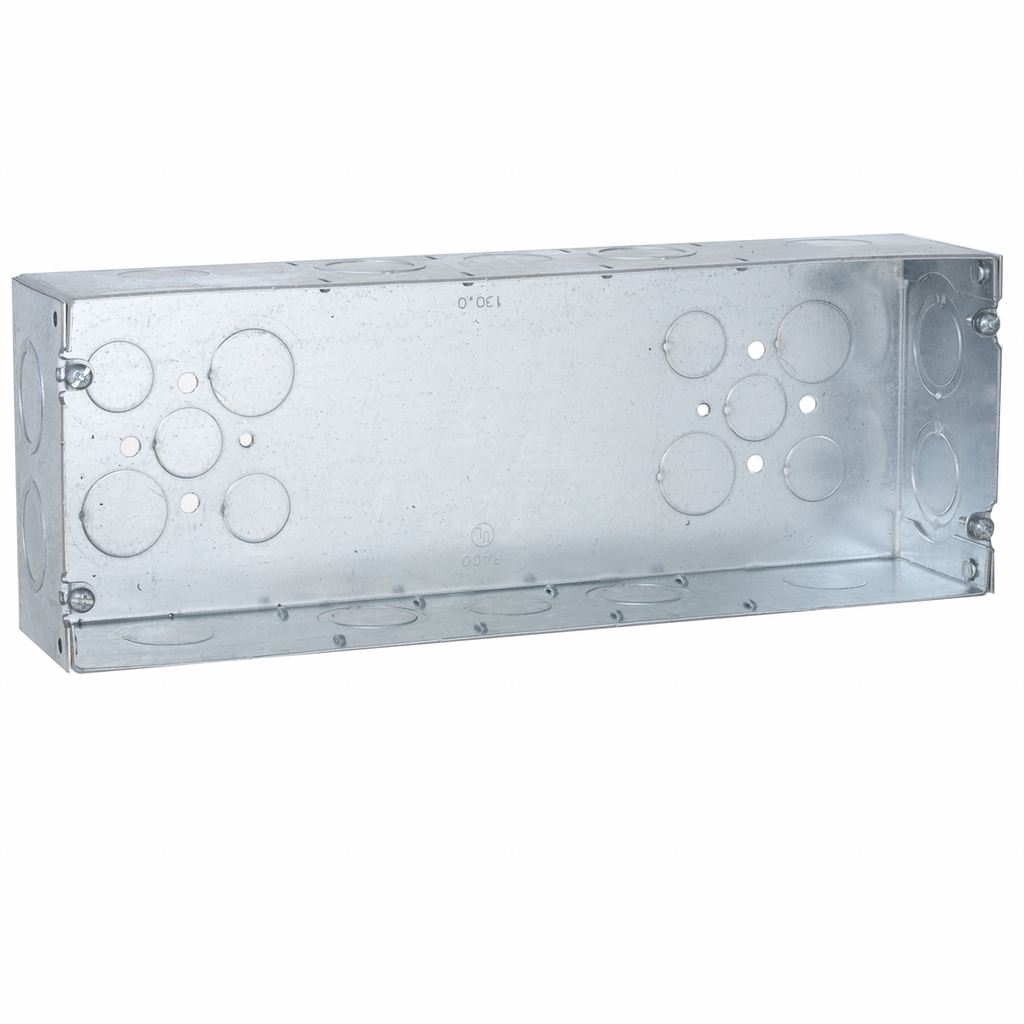

Raco 944 12-1/4 x 2-1/2 x 4-1/2" 132" cu.in. Steel 5-Gang Switch Box
$2,199.99/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Raco
Mfg Catalog # 944
QED Part # 1624002

Features

  • Gang boxes save time in installation, no need to gang boxes together.
  • Have 3/4" and 1" concentric KO's for use with a wide variety of wiring methods.
  • Bottom KO pattern, 3-1/2" and 2-3/4" at either end of box.
  • Accepts two styles of covers, flat and 3/4" raised device cover.
  • Use low voltage partitions #947 or #949.

Specifications

General

  • Bracket Type: No Bracket
  • Knockouts: 1/2 in;3/4 in;3/4-1 in Concentric
  • Material: Steel
  • Number of Gang(s): 5-Gang
  • Type: Box
  • UPC: 050169009444
  • Wiring System: Conduit

Dimensions

  • Cubic Capacity: 130. cu.in
  • Depth: 2.5 in
  • Height: 4.5 in
  • Weight: 2.559 lb
  • Width: 12.25 in

Certifications and Compliance

  • Certified Listed: UL Listed

Logistics

  • Carton Quantity: 5 EA
  • Pallet Quantity: 320 EA

Overview

UPC 05016900944
Long Description 5-Gang Box, Welded, 2-1/2 in. Deep, Eight 3/4 & 1 in. Concentric KO's, Six 1/2 in. KO's, and Ten 3/4 in. KO's
Type Gang box
Applications Electrical
GTiN 00050169009444
Width 12.25 in
Size 1-5/8 IN
Color Silver
Material Steel
Depth 2.5 in
Height 4.5 in
Weight 2.559 lb
Family Brand Name Raco
Construction Welded
Cable Entry Knockouts for conduit
