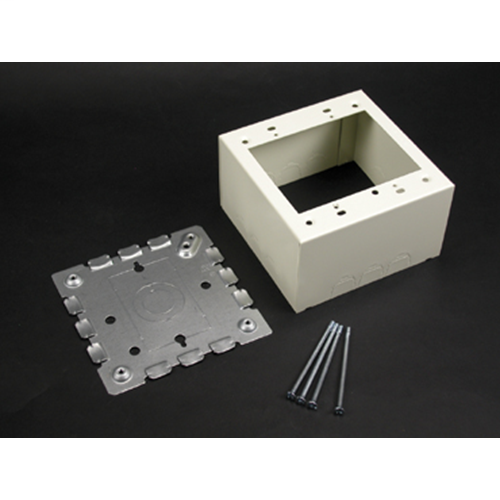

Wiremold V5744S-2 4-3/4 x 4-3/4 x 2-1/4" Ivory Steel 1-Channel Raceway 2-Gang Deep Switch and Receptacle Box
Product image thumbnail 0
Product image thumbnail 1
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # V5744S-2
QED Part # 136293
Boxes & Outlets

Specifications

General Info

  • Component Type: Boxes
  • Available Colors: V5744S-2- Ivory5744S-2WH - White
  • Product Series: 500, 700

Technical Information

  • Material: Steel
  • Capacity: Single-Channel

Compatible Series

  • V500, V500-5, V700, 700WH, V700-5

Resources

Overview

UPC 78677607049
Long Description Designed especially for use in the installation of signal system and alarm wiring. Base has 1/2" trade size KOs. Larger gang boxes available by special order. Two-gang: 4 3/4" L x 4 3/4" W [121mm x 121mm]. Accepts NEMA double-gang standard faceplates. NOTE: Certified to Canadian Safety Standards for sale in Canada. When ordering these products, change the "V" color prefix to "vc" or the "WH" color suffix to "WHC" to denote the Canadian versions.
GTiN 00786776070491
Length 4-3/4 in
Type 500 & 700 Series Raceway
Material Steel
Product Series 500,700
Applications Commercial, Office, Residential
Component Type Boxes
Country of Origin United States
Family Brand Name Wiremold
Certifications NAFTA,UL,ROHS
Outside Diameter 2 1/4" x 4 3/4"
Jacket Color Ivory, White
Sub Brand Wiremold
