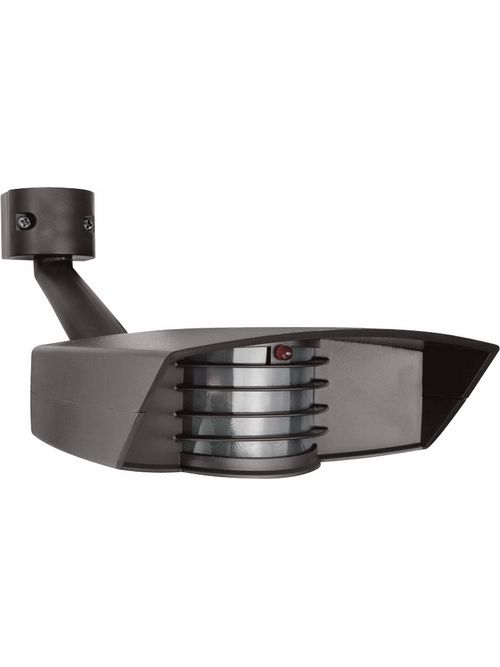

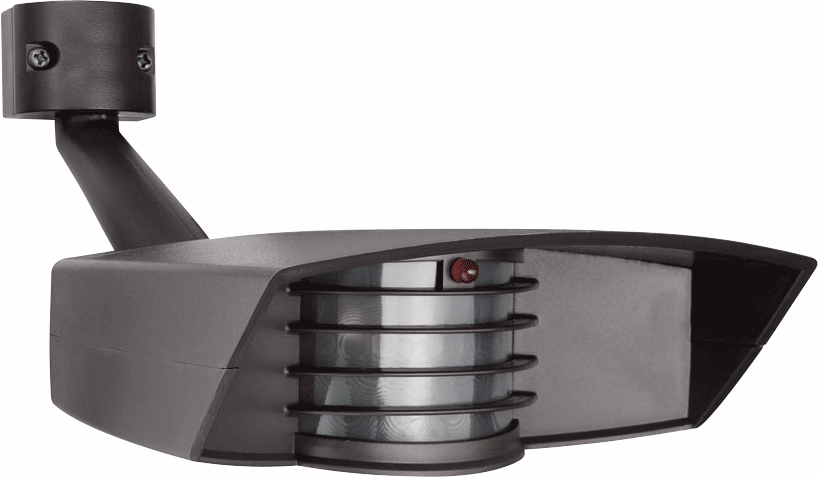

RAB STL110 120 Volt 1000 W 110 Degrees 5 x 3-1/2" Bronze LED Sensor
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 7 to 11 Days
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # STL110
QED Part # 122889
Motion Sensors


  • Temperature compensation
  • Radio frequency immunity
  • 6000 volt surge protection
  • LED detection & "on guard" indicator
  • Color matched vandal resistant lens and grill
  • Protected manual override with auto reset
  • Can be wired in parallel



  • Weight: 1.1 lbs


  • UL Listing: Suitable for wet locations


  • Power Consumption: 1W
  • Surge Protection: Withstands up to 6000 volts
  • Wall Switch Manual Override: Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.
  • RF Immunity: Circuits fully shielded for maximum radio frequency immunity
  • Voltage: 120 Volts AC 60 Hertz
  • Switching Capacity: 1000 watts incandescent @ 120 volts, 8 amps

Sensor Characteristics

  • Time Adjustment: 5 seconds to 12 minutes
  • Wide Sensitivity Control: Adjustable from 100% to 30%
  • Advanced Detection Logic: Minimizes false triggers
  • Photoelectric Control: Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
  • Detection: Angle of view = 110° Recommended Mounting Height = 10'-0" Maximum Recommended Look-Out Zone = 50'-0"


  • Temperature Compensation: Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
  • Horizontal Lock, No-tool Joints: Keeps sensing pattern level for fast, error-free installation
  • Floodlights: Precision die cast aluminum. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers.

LED Characteristics

  • LED Detection Indicator: Shows when sensor is detecting in daytime and glows red at night for "on-guard" deterrence
  • Color Matched Lens: Dark lens with bronze units, white lens with white units


  • Warranty: 10 year sensor warranty
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.


Long Description Stealth 110 Sensor 1000W,120V, Bronze
Applications OUTDOOR
GTiN 00019813601700
Finish Bronze
Warranty Length 10 yr
Voltage 120 Volt
Weight 1.1 lb
Family Brand Name Rab Design Lighting
Wattage 1000 Watt
UPC 01981360170
