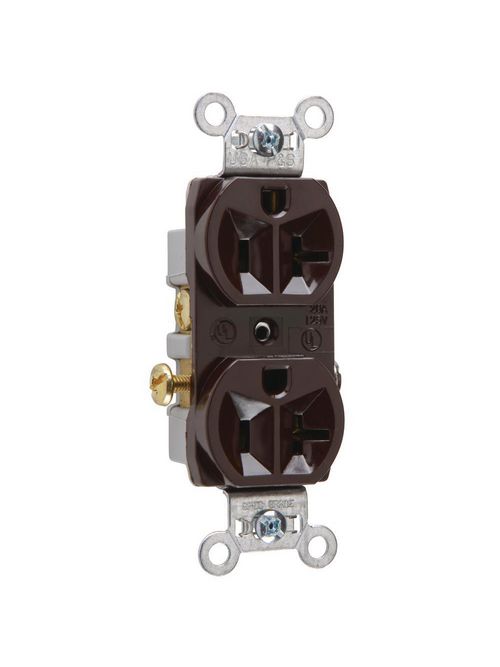

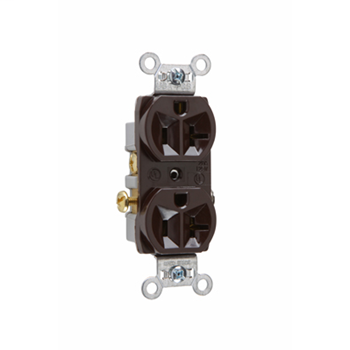

Pass & Seymour CR20 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Brown Nylon Face Corrosion-Resistant Duplex Receptacle
$1.74/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # CR20
QED Part # 121485
Duplex

Features

  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Brown
  • Type: Receptacles
  • Special Features: Side Wire

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 42
  • CSA Standard: Yes
  • cURus: No
  • Federal Spec: No
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406
  • UR: No

Dimensions

  • Depth (US): 0.78"
  • Height (US): 3.281"
  • Width (US): 1.322"

Technical Information

  • Amps: 20A
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Commercial

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500711912
Long Description Commercial Spec Grade Duplex Receptacle, Side Wire 20amp 125volt, Brown
GTiN 00785007119121
Finish Untreated, Gloss
Width 1.322 in
Size 3.3 in
Color Brown
Voltage 125 Volt
Type Receptacles
Material Thermoplastic
Conductor Size 4 AWG
Applications Residential/Commercial
Mounting Type Wall, Flush
Depth 0.78 in
Height 3.281 in
Grade Residential/Commerci
Country of Origin Mexico
Wire Size 4 AWG
Capacity Duplex
Connection Type Wire Ground, Side Wire
Family Brand Name Pass & Seymour
Certifications CULUS
TC Connection Wire Ground
Amperage 20 Amp
Blade Dimensions 33.58 mm W x 19.81 mm D x 83.31 mm H
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
