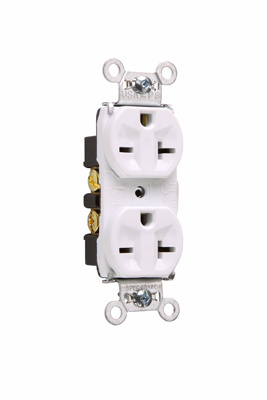

Pass & Seymour 5862-W 20 Amp 250 VAC 2-Pole 3-Wire NEMA 6-20R White Nylon Face PVC Back Body Duplex Receptacle
$18.47/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 5862W
QED Part # 119545
Duplex

Features

  • Heavy-duty, brass strap for added strength and ground conductivity.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • High strength nylon face.
  • Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors.
  • Eight back wire holes.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications: CULUS,FEDSPEC
  • Amperage: 20 A
  • Color: White
  • NEMA Rating: 6-20R
  • Product Line: Pass & Seymour
  • Voltage: 250.0 V
  • Number of Wires: 3.0
  • Wire Size: #14 - #10
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Connection: Back and side wire
  • Standard: cULus UL498, CSA C22.2 No. 42
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 2000V minimum
  • Special Features: Heavy-duty, brass strap for added strength and ground conductivity. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around face to prevent strap from separating from face and back body. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. High strength nylon face. Internal screw-pressure-plate back and side wired to accept #14 – #10 AWG stranded or solid copper or copper-clad conductors. Eight back wire holes. Auto-ground clip assures positive ground.

Certifications

  • cULus Listed: 140596
  • Federal Spec Listed: NO

Overview

Long Description Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 20amp 250volt Black
GTiN 00785007998405
Finish Untreated, Gloss
Width 1.322 in
Size 1.322 L x .780 W x 3.281 H In
Color White
Voltage 250 Volt
Type Heavy Duty
Material Nylon
Conductor Size 14-10 AWG
Applications Commercial Grade
Mounting Type Wall, Flush
Depth .780 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Wire Size 14-10 AWG
Capacity Duplex
Connection Type Back and Side Wire
Temperature Rating -40 to 60 C
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
TC Connection Back and side wire
Duty Rating Heavy Duty
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 33.528 mm W x 27.432 mm D x 83.312 mm H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
UPC 78500799840
NEMA 6-20R
