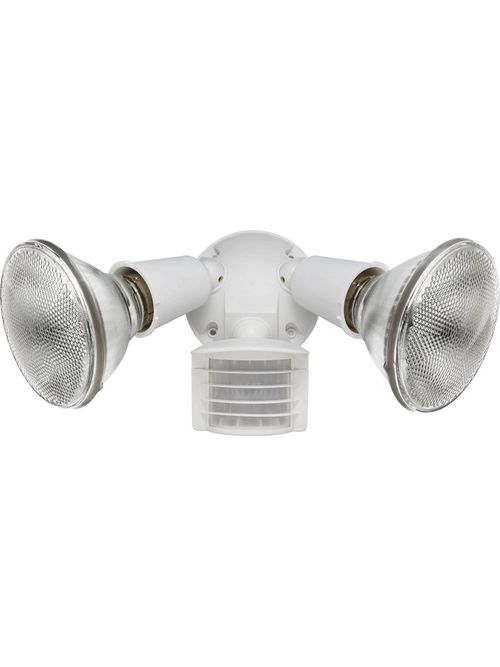

RAB LU300W 120 Volt 110 Degrees White Outdoor Lighting Sensor

Features

• 300 Watt switching capacity
• Manual override
• Fully adjustable positioning
• 110° double look down lens
• Tough, vandal resistant lens and grill
• LS300 fits 1/2" standard threaded cover plates
• 3-Year Warranty

Specifications

Dimensions

• Weight: 1.4 lbs

Listings

• UL Listing: Suitable for wet locations

Electrical

• Voltage: 120 volts AC 60 Hz
• Power Consumption: 1W
• Wall Switch Manual Override: Two flip logic prevents activation by momentary power outages. Override resets to auto after 6 hours or at dawn. No extra wiring needed.
• Surge Protection: Withstands up to 3000 volts
• Switching Capacity: 300 watts incandescent @ 120 volts, 2.5 amps.

Sensor Characteristics

• Time Adjustment: 8 seconds to 10 minutes
• Photo Control: Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
• Detector Sensitivity: Adjustable from 100% to 50%
• Auto Test Logic: 5 minutes of test time when power is turned on, Rests to auto mode without further adjustment
• Sensor Housing: Made of tough, corrosion resistant polycarbonate
• Detection: 110° view

Construction

• Floodlights: Made of tough, corrosion-resistant polycarbonate. Accepts PAR-38 lamps, medium base, 150 watts max. Lamps not included.

Other

• Warranty: 3 year sensor warranty
• Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
