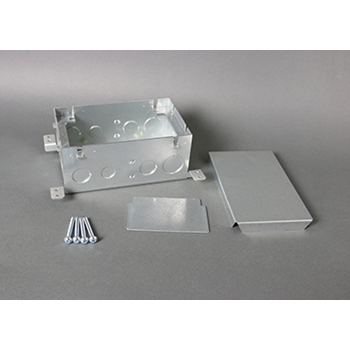

Wiremold 880S2 1/2 x 3/4 x 1" 117" 2-Gang Stamped Steel Floor Box
$79.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # 880S2
QED Part # 131094
Floor Boxes

Features

  • TopGuard protection. All cover assemblies for the Omnibox Floor Box Series have TopGuard protection. An integral design which keeps out water, dirt, and debris from the power and communication compartments.
  • Fully adjustable box. Before and after concrete pour adjustability. Lower installed cost.
  • Concrete-tight stamped steel construction. Lower cost option for above grade applications.
  • Two-gang configurations, maximum flexibility. Can remove divider for greater capacity. Supports multiservice applications.
  • Boxes and covers have been listed by Underwriters Laboratories Inc. to their standard UL514A, 514C, 514D, and Canadian standard C22.2.
  • Flush activation assemblies for carpet and tile. Aesthetically pleasing assemblies are interchangeable for both cast-iron and stamped steel.
  • Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point-of-use. A wide selection of data and bezel options available for use with Ortronics TracJack and Series II devices.

Specifications

General Info

  • Product Series: Omnibox
  • Component Type: Boxes
  • Knockout Size: 1/2"-1"

Construction Information

  • Installation Location: Above-Grade

Buy American Act Compliance

  • Country Of Origin: MULTIPLE
  • Buy American Act Status: Exception
  • Note: While most parts within this series comply with the BAA's Country of Origin requirements, some do not. For a complete list of all parts and their respective Country of Origin, refer to the "Series Part List-COO" under "Supporting Documents" on the "Resources" tab.

Overview

UPC 78656422175
Long Description This floor box series provides an excellent activation solution for applications where single service is required in open space areas. The floor box is offered in a stamped steel construction, designed to be installed in above grade concrete floor applications and to meet a wide range of market requirements. This floor box series has many applications, some of which are schools, financial institutions, and commercial office buildings.
GTiN 00786564221753
Length 7-15/16 in
Width 4-13/16 in
Size 7 15/16" x 4 13/16" x 3 15/32"
Color Black/Brass/Brown/Silver
Type Deep
Material Steel
Product Series Omnibox
Applications Commercial, Office
Mounting Type In Concrete
Depth 3-15/32 in
Country of Origin Mexico
Family Brand Name Wiremold
Construction Assembled
Certifications NAFTA,ROHS,CULUS
Number of Gangs 2 Gang
Cable Entry Through Floor
Sub Brand Wiremold
