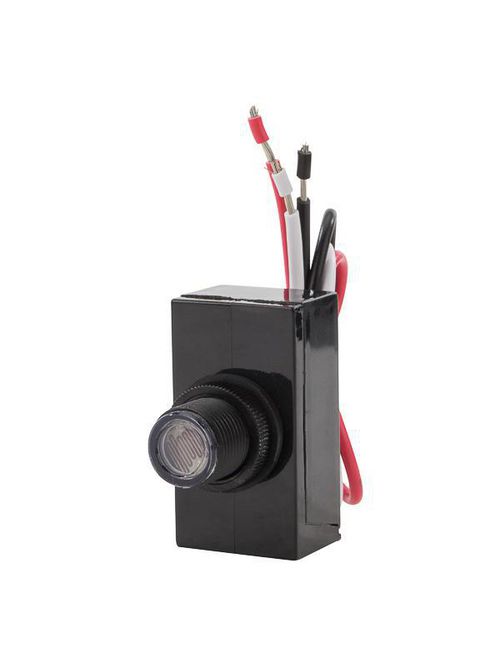

Tork 3002 277 VAC 3470 to 4620 W Tungsten SPST Flush Mount Lighting Photocontrol
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer NSi Industries
Mfg Catalog # 3002
QED Part # 130720
Recessed Mount


  • Frequency Rating: 50-60 Hz
  • Type: Flush Mount Lexan Housing Photocontrol
  • Sensor Type: Cadmium Sulphide Cell
  • Supply Voltage: 208-277 VAC
  • Dimensions: .375 Flush Mount
  • Timing Range: 2 Minutes
  • Power Consumption: Under 1 Watt
  • Mounting: Flush Mount
  • Enclosure: Lexan Housing
  • Environmental Conditions: -40 to + 140 F
  • Operating Temperature: -40 to + 140 F
  • Sensitivity: Turn On Is 1 to 5fc - Turn Off is 3 to 15fc
  • Standard: cULus
  • Application: Pole Lanterns-Lawn Lighting-Walkways

Related Products

  • WWC-Y
  • 7120Z-30
  • TA502
  • COS-L2T


Family Brand Name NSi
UPC 78626160019
Long Description Rigid compression type connector used to join Rigid or IMC conduit to a box or enclosure.
GTiN 00786261600196
Finish Zinc-Plated
Size 1 in
Operating Temperature -40 To 140 F
Voltage 208-277 Volt
Type Flush Mount Lexan Housing Photocontrol
Material Steel
Applications Pole Lanterns-Lawn Lighting-Walkways
Mounting Type Flush Mount
Standard CULUS
Frequency 50-60 Hz
Pkg Qty 25
Enclosure Rating -40 To + 140 F
Power Consumption 1 W
Environmental Conditions -40 To 140 F
Sensor Type Cadmium Sulphide Cell
Enclosure Lexan Housing
Sub Brand Photocontrols
