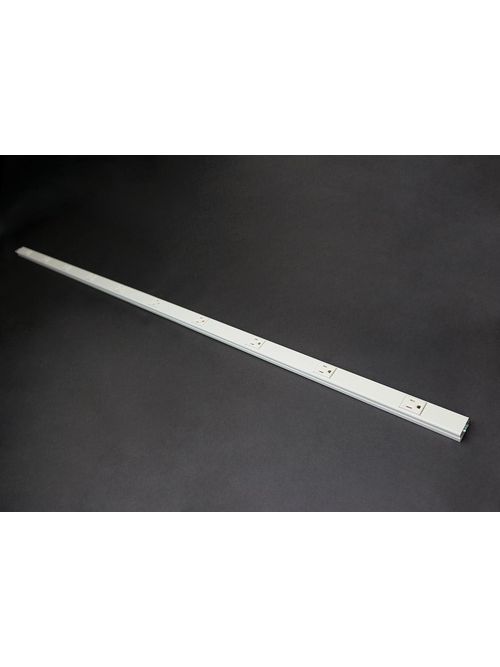

Wiremold V20GB506 60" 6" Center Distance Ivory Steel Single Raceway Multi-Outlet Strip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$84.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # V20GB506
QED Part # 136261
Raceway Pre-Wired

Features

  • Steel Raceway. Provides superior strength for any dry location installation.
  • Compact, low profile appearance. Requires minimal space.
  • Available in Ivory ScuffCoat or gray baked enamel finish. The durable ScuffCoat provides a durable, scratch-resistant finish while the gray baked enamel compliments the décor or can be painted.
  • Full range of fittings. Provides a complete wiring solution.
  • Single-and-dual-gang boxes. Wire devices into the raceway system or protect a Plugmold® strip with a surge or GFCI device.
  • Factory wired Plugmold® sections available in 3’, 5’, and 6’ lengths with 15A receptacles installed in cover. Ideal for short runs requiring additional outlets in electrically busy areas.
  • Single, alternating circuit, and isolated ground receptacles. Meets virtually any job requirement.
  • Choice of receptacle spacing. Center spacing between receptacles of 6'', 9'', 12'', and 18''.
  • Snapicoil harnesses of prewired receptacles in 48’ and 50’. Eliminates multiple splicing, speeding up installation on long runs.
  • Snapicoil harnesses offer a choice of receptacle spacing. Center spacing between receptacles of 12'', 18'' and 30''.
  • Customization available. All products can be modified to accommodate virtually any application.
  • This product meets the material restrictions of RoHS.

Specifications

  • Product Depth: 0.88 in
  • Special Features: 15A receptacles, Multiple colors available, Compact design, UL5 and ADA compliant, UL and cUL listed raceway
  • Product Height: 1.25 in
  • Amperage: 15 A
  • Type: Plugmold
  • Product Width: 60.0 in
  • Voltage: 125.0 V
  • Product Volume: 66.0 cu in
  • Enclosure Type: Steel
  • Product Weight: 2.93 lb
  • Frequency Rating: 60 Hz
  • Country Of Origin: US
  • Certifications: ROHS,CULUS,NAFTA
  • Number of Receptacles: 10.0
  • Color: Ivory
  • Application Sector: Residential/Commercial
  • Product Line: Wiremold
  • Environmental Conditions: Dry interior locations
  • Standard: cULus Listed Multioutlet Assembly: File E15191 Guide PVGT/PVGT7

Certifications

  • cULus Listed: E15191
  • NAFTA Compliant
  • RoHS Compliant

Overview

Long Description The Wiremold 2000 Series raceway offers a selection of steel, aluminum, and nonmetallic raceways that provide a versatile solution for many applications. Plugmold sections offer single or alternating circuits, in standard or isolated ground receptacles. The ScuffCoat finish is scratch resistant and protects against nicks and chips while preventing color from fading.
GTiN 00786776093193
Length 5 ft
Width 3/4 in
Type Multi-Outlet Power, Single Receptacle
Material Steel
Product Series Plugmold
Applications For Commercial, Office and Residential
Height 1-9/32 in
Country of Origin USA
Family Brand Name Wiremold
Certifications CULUS,NAFTA,ROHS
Enclosure Steel
Sub Brand Plugmold
Color Ivory
Voltage 125 Volt
Mounting Type Screw-On
Number of Outlets 10
Depth 0.88 in
Weight 2.93 lb
Amperage 15 Amp
UPC 78677609319
