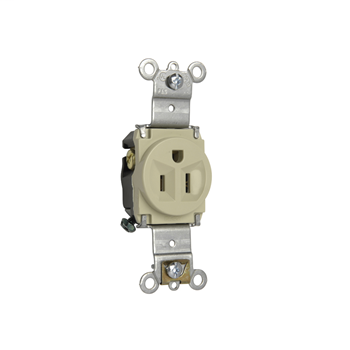

Pass & Seymour 5261-I 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Ivory Nylon Face Single Receptacle
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 5261-I
QED Part # 121487
Single

Features

  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • One-piece brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Ivory
  • Type: Single Receptacles
  • Duty: Heavy Duty
  • Special Features: Back,Side Wire

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 42
  • CSA Standard: Yes
  • cURus: No
  • Federal Spec: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406
  • UR: No

Dimensions

  • Depth (US): 1.093"
  • Height (US): 3.28"
  • Width (US): 1.32"

Technical Information

  • Amps: 15A
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Single
  • Grade Type: Federal Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500752611
Long Description Heavy-Duty Spec Grade Single Receptacle, Back & Side Wire, 15amp 125volt, Ivory
GTiN 00785007526110
Width 1.32 in
Size 1.32 L x 1.093 W x 3.68 H In
Color Ivory
Voltage 125 Volt
Type Single Receptacles
Material Nylon
Applications Commercial
Depth 1.093 in
Height 3.28 in
Grade Federal Specificatio
Country of Origin Mexico
Wire Size 14-10 AWG
Capacity Single
Family Brand Name Pass & Seymour
Certifications FEDSPEC,CUL
TC Connection Back and side wire
Duty Rating Heavy Duty
Amperage 15 Amp
Dielectric Strength Withstands 2000V min
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
