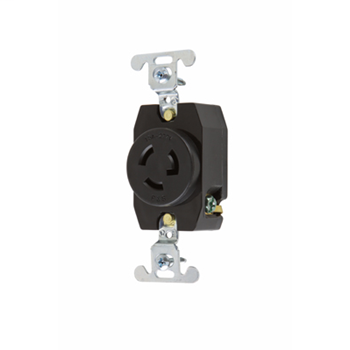

Pass & Seymour 4760 15 Amp 277 VAC 2-Pole 3-Wire NEMA L7-15R Nylon Locking Single Receptacle
$22.87/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 4760
QED Part # 119263
Single

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

General Info

  • Type: Single Receptacles
  • Number Of Wires: 3

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403

Dimensions

  • Depth (US): 1.203"
  • Height (US): 4.031"
  • Width (US): 1.437"

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: L715
  • Volts: 277V
  • Volts (AC): 277

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Turnlok Single Receptacle 3wire 15amp 277v
GTiN 00785007476002
Width 1.437 in
Size 4 in
Color Black
Voltage 277 Volt
Type Single Receptacles
Material Nylon
Applications Industrial Spec Grade
Depth 1.203 in
Height 4.031 in
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
NEMA L715
Certifications UL,CSA
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Pass & Seymour
