Manufacturer Wiremold
Mfg Catalog # V5738
QED Part # 136122
Boxes & Outlets

Specifications

General Info

  • Product Series: 500, 700
  • Available Colors: V5738 - Ivory5738WH - White
  • Component Type: Boxes

Technical Information

  • Capacity: Single-Channel
  • Material: Steel

Compatible Series

  • V500, V500-5, V700, 700WH, V700-5

Resources

Overview

UPC 78677607042

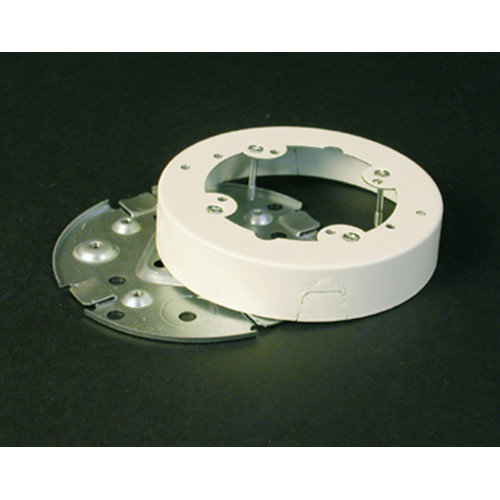

Long Description Used to hang fixtures. Cover accepts devices with mounting screw centers of 2 3/4", 3 1/2", and 4 1/16" [70mm, 89mm, and 103mm]. Base has four holes for fixture studs, four 1/2" trade size KOs, and raised section for no-bolt fixture-stud. Use as a junction or pull box with 5736 Blank Cover. Outside diameter 4 3/4" [121mm]. NOTE: Certified to Canadian Safety Standards for sale in Canada. When ordering these products, change the "V" color prefix to "VC" or the "WH" color suffix to "WHC" to denote the Canadian versions.
GTiN 00786776070422
Length 4-3/4 in
Type 500 & 700 Series Raceway
Material Steel
Product Series 500,700
Applications Commercial, Office, Residential
Component Type Boxes
Country of Origin United States
Family Brand Name Wiremold
Certifications UL,NAFTA,ROHS
Outside Diameter 1 in
Jacket Color Ivory, White
Sub Brand Wiremold
