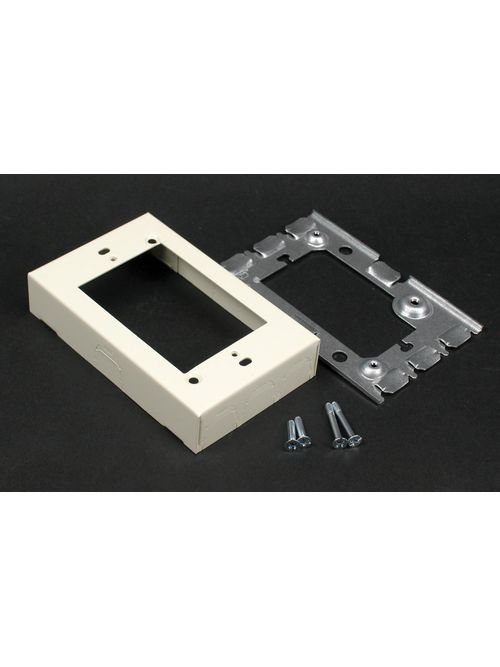

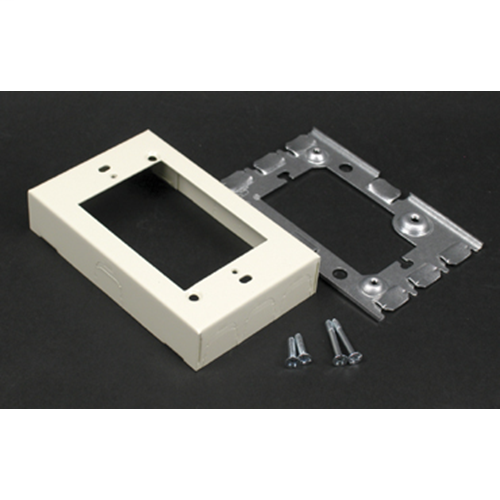

Wiremold V5751 4-5/8 x 2-7/8 x 15/16" Ivory Steel 1-Channel Raceway 1-Gang Flush Type Extension Adapter
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$10.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # V5751
QED Part # 136137
Fittings & Accessories

Features

  • This product meets the material restrictions of RoHS

Specifications

  • Special Features: Low-profile, unobtrusive appearance., Surface mounting, UL5 and ADA compliant, UL and cUL Listed component raceways
  • Product Depth: 1.0 in
  • Product Height: 3.0 in
  • Type: Raceway
  • Product Width: 4.75 in
  • Voltage: 300.0 V
  • Product Volume: 14.25 cu in
  • Application Sector: Commercial
  • Product Weight: 0.35 lb
  • Standard: cULus Listed Surface Metal Raceway: File E41751: Guide RJPR
  • Country Of Origin: US
  • Certifications: ROHS,NAFTA,UL,CULUS
  • Color: Ivory
  • Product Line: Wiremold

Certifications

  • cULus Listed: E41751
  • NAFTA Compliant
  • RoHS Compliant
  • UL Listed: E41751

Overview

Long Description Wiremold 500 Series and 700 Series raceways are ideal for surface mounting small amounts of electrical wiring or communication cables. These rugged raceways offer a low profile appearance which blend with any decor. Available in our exclusive ScuffCoat finish.
GTiN 00786776070590
Length 4-5/8 in
Finish Ivory
Type Low Profile
Material Steel
Product Series 500,700
Applications Commercial, Office, Residential
Component Type Brackets & Plates
Country of Origin USA
Family Brand Name Wiremold
Certifications CULUS,NAFTA,ROHS,UL
Outside Diameter 2 7/8" x 15/16"
Blade Dimensions 2-7/8 x 15/16 in OD x 4-5/8 in L
Jacket Color Ivory, White
Used With 500 and 700 Series Raceway
Sub Brand Wiremold
Voltage 300 Volt
Width 4.75 in
Color Ivory
Depth 1.0 in
Height 3.0 in
Weight 0.35 lb
UPC 78677607059
