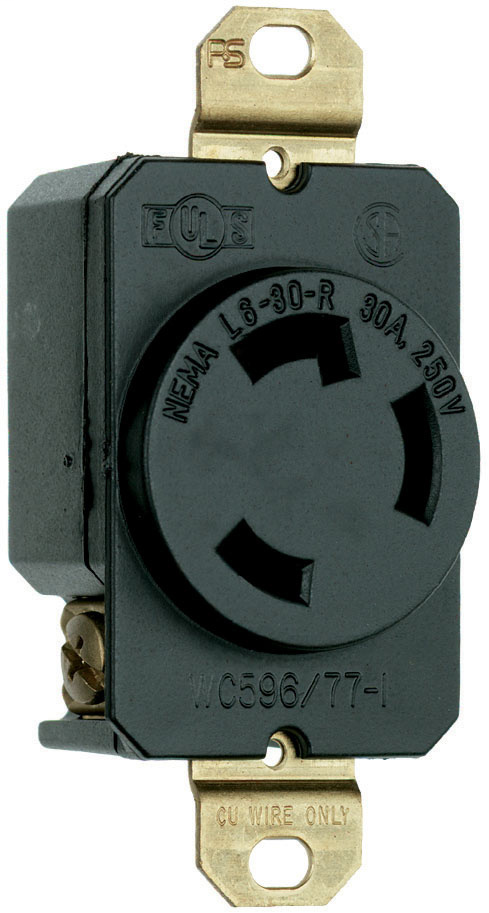

Pass & Seymour L630-R 30 Amp 250 VAC 2-Pole 3-Wire NEMA L6-30R Impact-Resistant Nylon Locking Single Receptacle
$23.27/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L630-R
QED Part # 121543
Single

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

General Info

  • Type: Single Receptacles
  • Number Of Wires: 3

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • CUL Listing No: No
  • cURus: No
  • Federal Spec: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403
  • UR: No

Dimensions

  • Depth (US): 1.28"
  • Height (US): 3.28"
  • Width (US): 1.61"

Technical Information

  • Amps: 30A
  • NEMA Configuration Number: L6-30R
  • Volts: 250V
  • Volts (AC): 250

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500726305
Long Description Features high-quality, brass contacts for rock-solid electrical connections and long service life. Single-piece, solid brass or steel straps and impact-resistant nylon face and body help it shrug off hard use.
GTiN 00785007263053
Finish Gloss
Width 1.61 in
Size 3.3 in
Color Black
Voltage 250 Volt
Type Single Receptacles
Material Nylon
Conductor Size 4 AWG
Applications Industrial Spec Grade
Mounting Type Flush
Depth 1.28 in
Height 3.28 in
Grade Industrial/Specifica
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
NEMA L6-30R
Certifications FEDSPEC,CULUS
Amperage 30 Amp
Blade Dimensions 3.3 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Turnlok
