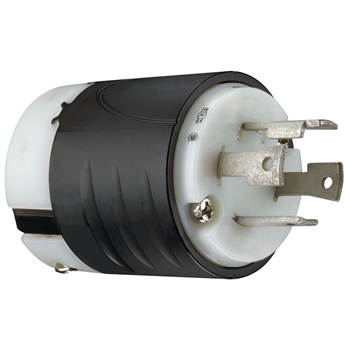

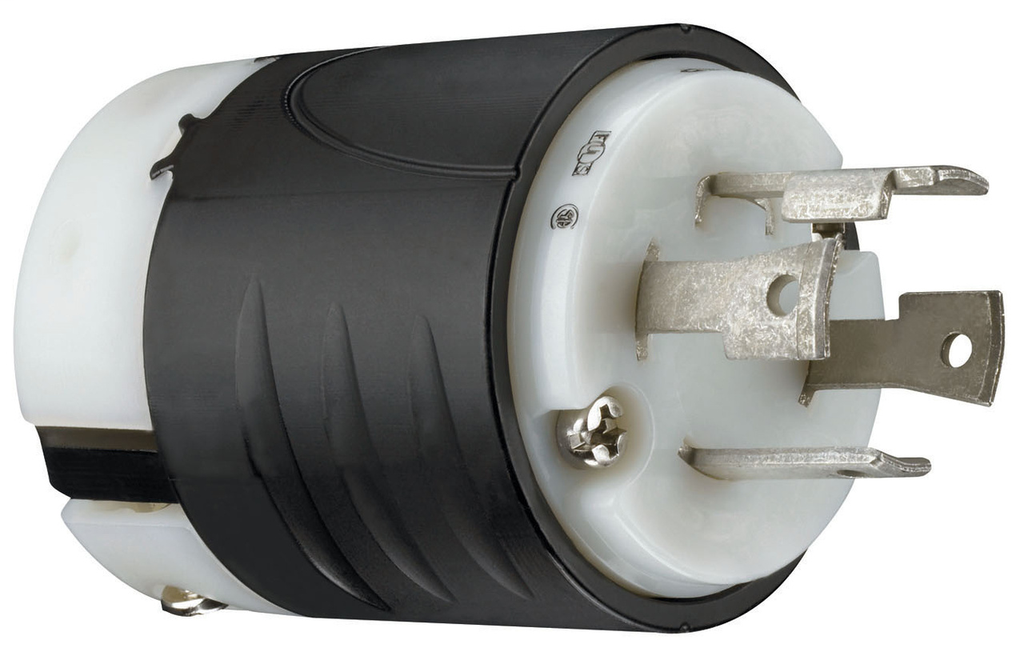

Pass & Seymour L1430-P 30 Amp 125/250 VAC 3-Pole 4-Wire NEMA L14-30P Black and White Nylon Straight Locking Plug
$36.19/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L1430-P
QED Part # 121519
Plugs

Features

  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock.
  • Double dovetail design provides superior protection against cord pull-out forces.
  • Impact- and corrosion-resistant durable nylon 6 shell material.
  • Rounded back contour reduces snags and hang-ups on the job site.
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
  • Visible stamped NEMA configuration and device rating.
  • New-design external cord grips provide visible assurance of safe and proper cord retention.
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.

Specifications

General Info

  • Type: Turnlock, locking Plug

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403

Dimensions

  • Diameter (US): 2.20"
  • Length (US): 3.75"

Technical Information

  • Amps: 30A
  • NEMA Configuration Number: L1430
  • Volts: 250V

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500714304
Long Description Turnlok Plug 4wire 30amp 125/250v
GTiN 00785007143041
Length 3.75 in
Size 3.8 in
Color Black/White
Voltage 250 Volt
Type Turnlock, Locking Plug
Diameter 2.20 in
Material Nylon
Conductor Size 4 AWG
Applications Industrial Spec Grade
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
NEMA L1430
Certifications CULUS
Amperage 30 Amp
Blade Dimensions 3.8 in
Number of Poles 2 Pole
Number of Wires 4
UNSPSC 39121403
Sub Brand Pass & Seymour
