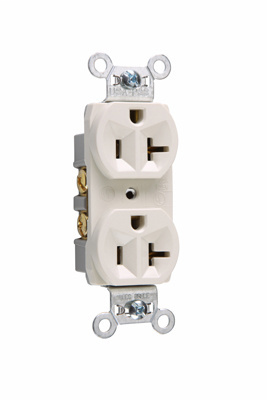

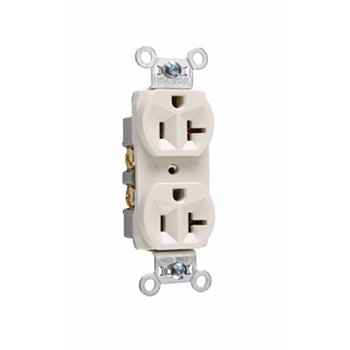

Pass & Seymour CR20-LA 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Light Almond Nylon Face Corrosion-Resistant Duplex Receptacle
$1.74/ea
In Stock | 127 available at 6 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # CR20LA
QED Part # 120841
Duplex

Features

  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Amperage: 20 A
  • Standard: UL 498
  • NEMA Rating: 5-20R
  • Certifications: CULUS
  • Country Of Origin: MX
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Wire Size: 4 AWG
  • Number of Wires: 3.0
  • Connection: Wire Ground
  • Number of Poles: Double Pole
  • Application Sector: Residential/Commercial
  • Special Features: Side wire, Duplex, tri-driver terminal &Mountingscrews

Certifications

  • cULus Listed: 140596

Overview

GTiN 00785007608045
Finish Untreated, Gloss
Width 1.322 in
Size 3.3 in
Color Light Almond
Voltage 125 Volt
Type Receptacles
Material Thermoplastic
Conductor Size 4 AWG
Applications Residential/Commercial
Mounting Type Wall, Flush
Depth 0.78 in
Height 3.281 Inch
Grade Commercial
Country of Origin Mexico
Wire Size 4 AWG
Capacity Duplex
Connection Type Wire Ground
Family Brand Name Pass & Seymour
Certifications CULUS
TC Connection Wire Ground
Amperage 20 Amp
Blade Dimensions 33.58 mm W x 19.81 mm D x 83.31 mm H
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
UPC 78500760804
NEMA 5-20R
