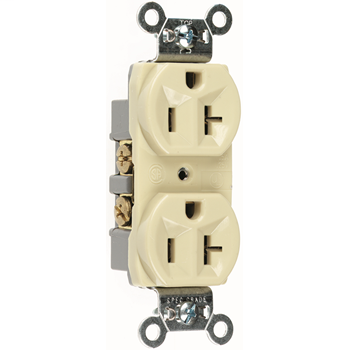

Pass & Seymour CR20-I 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Ivory Nylon Face Corrosion-Resistant Duplex Receptacle

Features

• Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
• .032 inch thick, brass, triple-wipe power contacts for lasting retention.
• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
• Impact-resistant nylon face and thermoplastic back body.
• Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
• Terminal compartments isolated from each other for positive conductor containment.
• Tri-drive terminal and mounting screws.
• Auto-ground clip assures positive ground.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

• Color: Ivory
• Type: Receptacles
• Special Features: Side Wire

Listing Agencies/Third Party Certifications

• RoHS: Yes
• CSA Listing Info: C22.2 No. 42
• CSA Standard: Yes
• Federal Spec: No
• UL Listing No: UL498
• UL Standard: Yes
• UN SPSC: 39121406

Dimensions

• Depth (US): 0.78"
• Height (US): 3.281"
• Width (US): 1.322"

Technical Information

• Amps: 20A
• NEMA Configuration Number: 5-20R
• Volts: 125V
• Volts (AC): 125
• Capacity: Duplex
• Grade Type: Commercial

Buy American Act Compliance

• Country Of Origin: MEXICO
• Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

• RoHS Compliant
