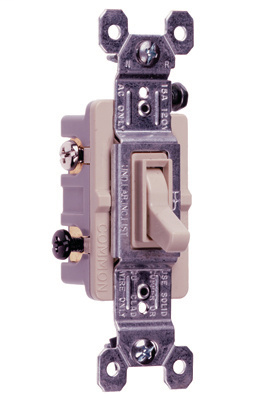

Pass & Seymour 663-LAG 15 Amp 120 VAC 3-Way Light Almond Thermoplastic Screw Mounting Grounding Toggle Switch
$140.99/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 663-LAG
QED Part # 120047
Commercial Grade

Features

  • Thermoplastic toggle and frame.
  • Extra-long strap.
  • High-impact resistant construction.
  • Side wire #12 and #14 AWG.
  • Push wire #14 AWG.
  • Tri-drive ground, terminal, and mounting screws.
  • Easy-access green hex head ground screw.
  • Smooth, quiet toggle action.
  • This switch is compatible with incandescent loads only and is not recommended for use with LED or CFL lamps.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: Light Almond
  • Product Series: TradeMaster
  • Type: Toggle
  • Number Of Poles: 3-way
  • Special Features: NAFTA Compliant, Self-Grounding

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • cULus: Yes
  • UL Standard: Yes
  • UN SPSC: 39121406

Dimensions

  • Depth (US): 1.090"
  • Height (US): 3.281"
  • Width (US): 1.25"

Technical Information

  • Amps: 15A
  • Volts: 120VAC
  • Volts (AC): 120

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500719113
Long Description NAFTA-Compliant Triple Pole Switch, Grounded Terminals, 15 amps, 120 volts, Light Almond. **Available in bulk packs of 90.  Add "U" to end of catalog number.  Example: 663LAGU
GTiN 00785007191134
Width 1.25 in
Size 3.3 in
Color Light Almond
Voltage 120 Volt
Type 3 Wire, 3 Way
Material Thermoplastic
Conductor Size 4 AWG
Product Series TradeMaster
Applications Residential/Commercial
Depth 1.090 in
Height 3.281 in
Grade Commercial
Country of Origin Mexico
Wire Size 4
Family Brand Name Pass & Seymour
Certifications CULUS
TC Connection Grounding
Amperage 15 Amp
Blade Dimensions 3.3 in
Number of Poles 3
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
