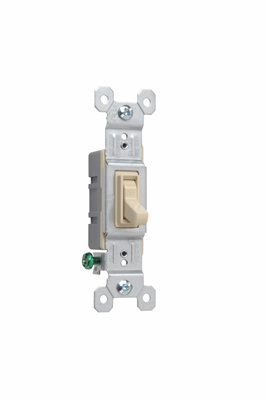

Pass & Seymour 660-IG 15 Amp 120 VAC 1-Pole Ivory Thermoplastic Screw Mounting Grounding Toggle Switch
$75.99/c (100 ea)
In Stock | 175 available at 7 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 660-IG
QED Part # 119448
Commercial Grade;Residential Grade

Features

  • Side wire #12 and #14 AWG. Push wire #14 AWG.
  • Tri-drive ground, terminal, and mounting screws.
  • Easy-access green hex head ground screw.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: Ivory
  • Product Series: TradeMaster
  • Type: Toggle
  • Number Of Poles: 1
  • Special Features: Self-Grounding

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 111
  • CSA Standard: Yes
  • cULus: Yes
  • cUL Standard: Yes
  • UL Listing No: UL20
  • UL Standard: Yes
  • UN SPSC: 39121406

Dimensions

  • Depth (US): 1.090"
  • Height (US): 3.281"
  • Width (US): 1.25"

Technical Information

  • Amps: 15A
  • Volts: 120VAC
  • Volts (AC): 120

Buy American Act Compliance

  • Country Of Origin: CHINA
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Single Pole Switch in ivory, with grounded terminals, is made of a thermoplastic toggle and frame. It has a smooth, quiet toggle action.  It is made with high-impact resistant construction. 15 amps, 120 volts. *Available in bulk packs of 120.  Add "U" to end of Catalog Number.  Example: 660IGU
GTiN 00785007660074
Width 1.25 in
Size 3.3 in
Color Ivory
Voltage 120 Volt
Type 3 Wire
Material Thermoplastic
Conductor Size 4 AWG
Product Series TradeMaster
Applications Residential/Commercial
Depth 1.090 in
Height 3.281 in
Grade Commercial
Country of Origin China
Wire Size 4 AWG
Family Brand Name Pass & Seymour
Certifications CULUS,UL,CSA
TC Connection Grounding
Actuator Rocker/Button
Amperage 15 Amp
Blade Dimensions 3.3 in
Number of Poles 1 Pole
Number of Wires 3
Action Off
UNSPSC 39121406
Sub Brand Pass & Seymour
