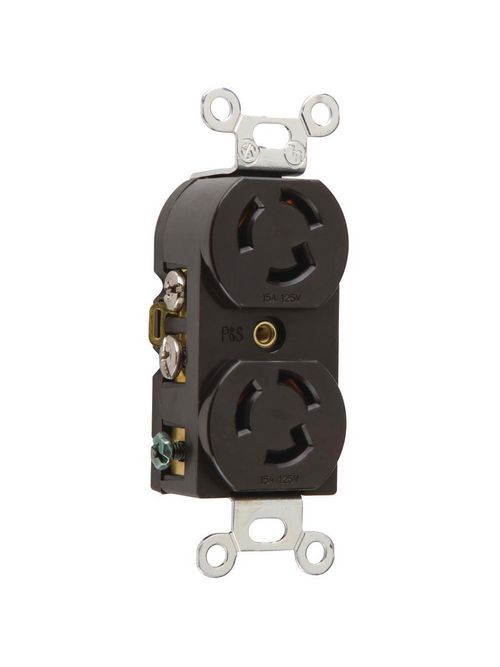

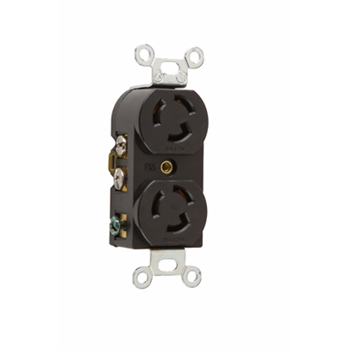

Pass & Seymour 4700 15 Amp 125 VAC 2-Pole 3-Wire NEMA L5-15R Nylon Locking Duplex Receptacle
$30.59/ea
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 4700
QED Part # 121557
Duplex

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

General Info

  • Type: Duplex, Receptacles
  • Number Of Wires: 3

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403

Dimensions

  • Depth (US): 1.199"
  • Height (US): 3.281"
  • Width (US): 1.50"

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: L515
  • Volts: 125V
  • Volts (AC): 125

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Turnlok Duplex Receptacle 3wire 15amp 125v
GTiN 00785007470000
Finish Gloss
Width 1.50 in
Size 3.3"
Color Black
Voltage 125 Volt
Type Duplex, Receptacles
Material Thermoplastic
Conductor Size 18 AWG
Applications Industrial
Mounting Type Flush
Depth 1.199 in
Height 3.281 in
Grade Industrial
Country of Origin Mexico
Wire Size 18-0 AWG
Family Brand Name Pass & Seymour
NEMA L515
Certifications UL,CSA
Amperage 15 Amp
Blade Dimensions 3.3 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Turnlok
