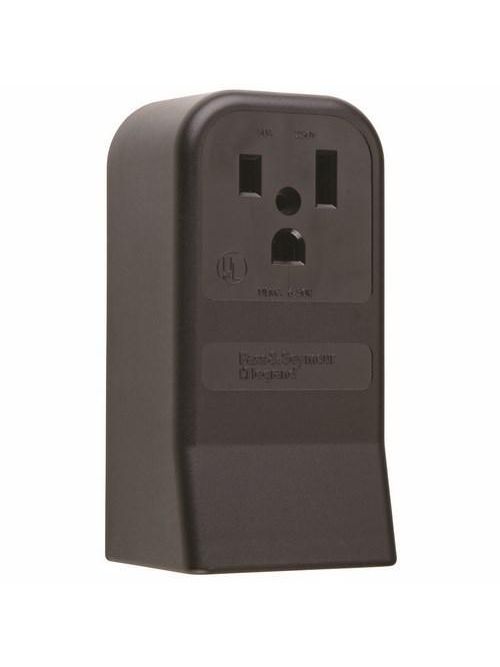

Pass & Seymour 3852 50 Amp 250 VAC 2-Pole 3-Wire NEMA 6-50R Straight Blade Power Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 3852
QED Part # 119549
Single

Features

  • Quality Materials.
  • Durability.
  • Time-tested Design.

Specifications

  • Country Of Origin: CN
  • Amperage: 50 A
  • Standard: UL 498
  • Certifications: CULUS,UL
  • Color: Black
  • Wire Size: 4
  • NEMA Rating: 6-50
  • Product Line: Pass & Seymour
  • Voltage: 250.0 V
  • Number of Wires: 3.0
  • Connection: Wire Ground
  • Number of Poles: Double Pole
  • Special Features: Arc-resistant plastic, dead front design & double wire contact

Certifications

  • cULus Listed: 140596
  • UL Listed: 140596

Overview

Long Description Straight Blade Receptacle 2pole Wire 50amp 250v
GTiN 00785007791853
Finish Gloss
Width 2.8 in
Size 5.7 in
Color Black
Voltage 250 Volt
Type Straight Blade Receptacle
Material Thermoplastic
Conductor Size 4 AWG
Applications Industrial Spec Grade
Mounting Type Wall, Surface
Height 5.65 in
Grade Industrial/Specifica
Country of Origin China
Wire Size 4 AWG
Connection Type Wire Ground
Family Brand Name Pass & Seymour
Certifications CULUS,UL
Buy American Compliant No
TC Connection Wire Ground
Amperage 50 Amp
Blade Dimensions 5.7 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
UPC 78500779185
NEMA 6-50
